Cisco GLC-LH-SM GE SFP,LC connector LX/LH transceiver

Manufacturer Cisco - Linksys

GLC - LH other features - SM GE SFP , LC connector LX / LH transceiver

More information about Cisco GLC - LH - SM

The Cisco ® 100BASE-X Small Form-Factor Pluggable (SFP) device (Figure 1) is a hot-swappable input/output device that plugs into Fast Ethernet ports, dual-rate Fast/Gigabit Ethernet ports, or Gigabit Ethernet ports of a Cisco switch or router, linking the port with the fiber cabling network.
Main features include the following:

• Hot-swappable when deployed, the switch or router does not have to reboot

• Supports the "pay-as-you-populate" model

• Interchangeable with other 100BASE-X SFPs on the same line card

• Supports the Cisco quality ID feature that enables the switch or router to identify whether or not the SFP is a Cisco qualified SFP

• Optically interoperable with respective 100BASE-X Ethernet interfaces on the same link

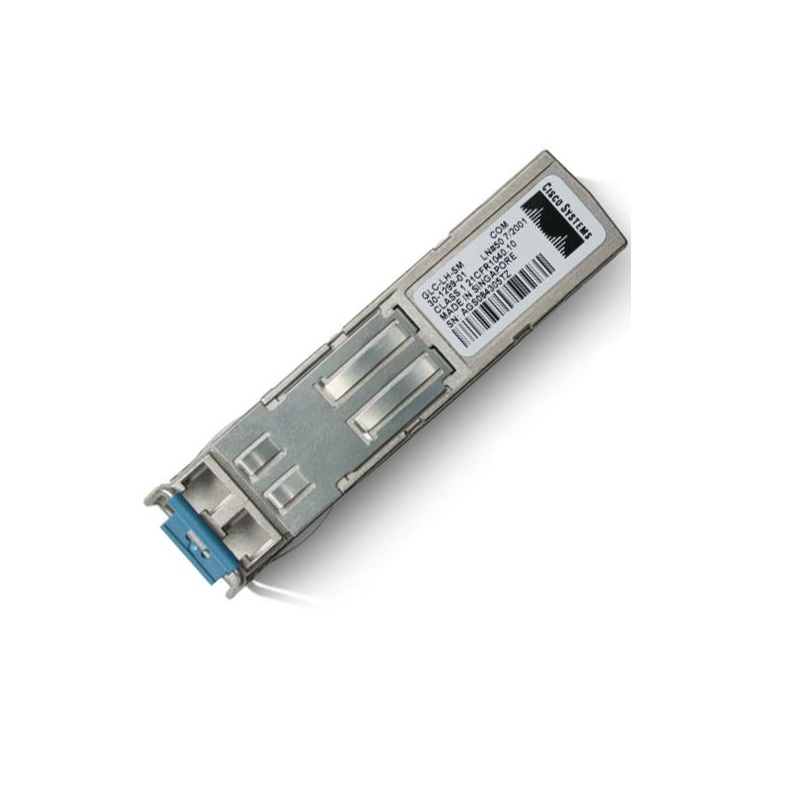

Figure 1. Cisco 100M Ethernet SFP

Cisco 100BASE-FX SFP
The Cisco 100BASE-FX SFP operates on ordinary multimode fiber-optic (MMF) link spans up to 2 kilometers (km) long.
GLC-FE-100FX modules operate in Fast Ethernet or dual-rate Fast/Gigabit Ethernet ports of Cisco switches and routers.
GLC-FE-100FX-RGD modules operate in Fast Ethernet or dual-rate Fast/Gigabit Ethernet ports of Cisco Industrial Ethernet and SmartGrid switches and routers.
GLC-GE-100FX modules operate in Gigabit Ethernet ports of Cisco switches and routers.
All these modules are interoperable with industrywide interfaces compliant to the IEEE 100BASE-FX standard.

Cisco 100BASE-LX10 SFP
The Cisco 100BASE-LX10 SFP operates on ordinary single-mode fiber-optic (SMF) link spans up to 10 km long.
GLC-FE-100LX modules operate in Fast Ethernet or dual-rate Fast/Gigabit Ethernet ports of Cisco switches and routers.
GLC-FE-100LX-RGD modules operate in Fast Ethernet or dual-rate Fast/Gigabit Ethernet ports of Cisco Industrial Ethernet and SmartGrid switches and routers.
These modules are interoperable with industrywide interfaces compliant to the IEEE 100BASE-LX10 standard.

Cisco 100BASE-BX10 SFP
The Cisco 100BASE-BX10 (part numbers GLC-FE-100BX-D and GLC-FE-100BX-U) SFPs operate on ordinary SMF single-strand link spans up to 10 km long. A 100BASE-BX10-D device is always connected a 100BASE-BX10-U device with a single strand of standard SMF with an operating transmission range up to 10 km. The communication over a single strand of fiber is achieved by separating the transmission wavelength of the two devices as depicted in Figure 2. 100BASE-BX10-D transmits a 1550-nm channel and receives a 1310-nm signal, whereas a 100BASE-BX10-U transmits a 1310-nm wavelength and receives a 1550-nm signal. Note in Figure 2 the presence of a wavelength-division multiplexing (WDM) splitter integrated into the SFP to split the 1310-nm and 1550-nm light paths.

Figure 2. Bidirectional Transmission on a Single Strand of SMF

Cisco 100BASE-EX SFP
The Cisco 100BASE-EX SFP operates on ordinary SMF link spans up to 40 km long.
GLC-FE-100EX modules operate in Fast Ethernet or dual-rate Fast/Gigabit Ethernet ports of Cisco switches and routers.

Cisco 100BASE-ZX SFP
The Cisco 100BASE-ZX SFP operates on ordinary SMF link spans up to 80 km long.
GLC-FE-100ZX modules operate in Fast Ethernet or dual-rate Fast/Gigabit Ethernet ports of Cisco switches and routers.

Technical Specifications

Platform Support
The Cisco SFPs are supported across a variety of Cisco switches, routers, and optical transport devices. For more details, refer to the document Cisco 100M Ethernet SFP Compatibility Matrix.

Connectors and Cabling
Connectors: Dual LC connector (GLC-FE-100FX, GLC-FE-100FX-RGD, GLC-GE-100FX, GLC-FE-100LX, GLC-FE-100LX-RGD, GLC-FE-100EX, and GLC-FE-100ZX) or single LC connector (GLC-FE-100BX-D and GLC-FE-100BX-U)
Table 1 provides cabling specifications for the SFPs for installation in a Fast Ethernet SFP port. Note that all SFP ports have LC-type connectors, and the minimum cable distance for all SFPs listed (MMF and SMF [G.652]) is 2 meters (6.5 feet).
