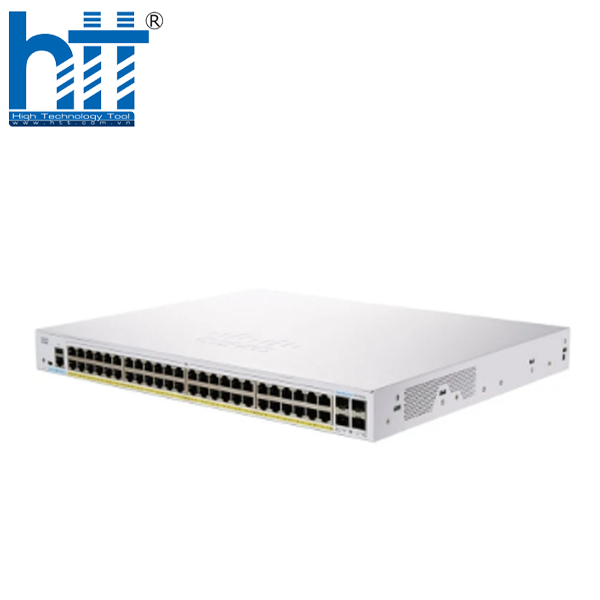

    CBS350-48P-4G-EU Cisco Business 350 Series 48X10/100/1000 ports PoE+
    Giá bán: Liên hệ
    • Mã sản phẩm: MT-CBS350-48P-4G-EU
    • Tình trạng: Còn hàng
    • Giá trên đã bao gồm VAT, Giao hàng, lắp đặt, hướng dẫn và bảo hành tận nơi sử dụng
    • Bảo hành: 12 Tháng

      Cisco Business 350 Series CBS350-48P-4G, CBS350-48P-4G-EU, CBS350-48P-4G-xx 48x10/100/1000 ports PoE+ with 370W power budget 4xGigabit SFP.

    CBS350-48P-4G-EU Cisco Business 350 Series 48X10/100/1000 ports PoE+

    Văn phòng của bạn đã có thiết bị mạng đủ mạnh, đủ thông minh để vận hành mượt mà chưa? Trong thời đại số hóa, việc xây dựng một hệ thống mạng ổn định, bảo mật và dễ quản lý là điều kiện tiên quyết để duy trì hiệu quả vận hành của doanh nghiệp. Với các văn phòng nhỏ và vừa, việc lựa chọn một switch mạng vừa tiết kiệm chi phí, vừa đảm bảo hiệu năng là bài toán quan trọng. Switch Cisco CBS350-48P-4G-EU chính là giải pháp lý tưởng: cung cấp đến 48 cổng PoE+, hiệu năng Gigabit, khả năng quản lý linh hoạt cùng thương hiệu Cisco uy tín. Hãy cùng Hợp Thành Thịnh tìm hiểu chi tiết hơn về sản phẩm này để lựa chọn tối ưu cho doanh nghiệp của bạn.



    1. Thiết kế mạnh mẽ – Phù hợp mọi môi trường văn phòng

    Switch Cisco CBS350-48P-4G-EU sở hữu kiểu dáng chuẩn rack 1U, dễ dàng lắp đặt trong các tủ mạng chuyên dụng tại văn phòng hoặc trung tâm dữ liệu nhỏ. Thiết bị được thiết kế với vỏ kim loại chắc chắn, độ bền cao, phù hợp cho hoạt động liên tục 24/7.

    - 48 cổng PoE+ 10/100/1000 Mbps: Dễ dàng kết nối và cấp nguồn trực tiếp cho camera IP, điện thoại IP, điểm truy cập WiFi,...

    - 4 cổng uplink SFP: Cho phép kết nối cáp quang tốc độ cao, mở rộng mạng lên các tầng hoặc văn phòng khác.



    2. Cấp nguồn linh hoạt với công nghệ PoE+

    CBS350-48P-4G-EU hỗ trợ chuẩn PoE+ (IEEE 802.3at) với tổng công suất lên tới 370W, đủ để cung cấp điện cho hàng loạt thiết bị ngoại vi mà không cần thêm bộ cấp nguồn riêng. Đây là lợi thế giúp tiết kiệm chi phí triển khai hệ thống mạng và giảm thiểu rối rắm trong quá trình đi dây.

    Một số ứng dụng nổi bật của PoE+:

    - Kết nối camera an ninh IP mà không cần nguồn riêng.

    - Cấp nguồn cho thiết bị WiFi ở các vị trí khó đi dây.

    - Sử dụng với điện thoại VoIP tại các bàn làm việc.

    - Cung cấp điện cho thiết bị điều khiển IoT trong hệ thống tòa nhà thông minh.



    3. Quản lý đơn giản nhưng chuyên nghiệp

    Là một thiết bị Layer 3 Lite Managed, Cisco CBS350-48P-4G-EU cung cấp khả năng quản lý linh hoạt thông qua:

    - Giao diện Web trực quan dễ sử dụng.

    - Giao thức CLI dành cho người dùng chuyên sâu.

    - Giao diện quản lý tập trung Cisco Business Dashboard: Quản lý nhiều thiết bị mạng từ một nơi duy nhất.

    Hỗ trợ các tính năng như:

    - VLAN – phân tách lưu lượng nội bộ hiệu quả.

    - QoS – ưu tiên dữ liệu thoại, video,...

    - IGMP Snooping – tối ưu truyền tải dữ liệu đa hướng cho camera hay hội nghị trực tuyến.



    4. Bảo mật mạng toàn diện cho doanh nghiệp

    Cisco CBS350-48P-4G-EU không chỉ là một switch thông thường mà còn là tuyến phòng thủ đầu tiên giúp bảo vệ mạng doanh nghiệp khỏi các rủi ro an ninh mạng:

    - Access Control Lists (ACLs) – kiểm soát truy cập chi tiết theo người dùng, địa chỉ IP, port.

    - 802.1X RADIUS Authentication – xác thực người dùng trước khi truy cập vào hệ thống.

    - Port Security – giới hạn số lượng thiết bị kết nối vào từng cổng.

    - DoS Protection – chống tấn công từ chối dịch vụ.

    Nhờ đó, hệ thống mạng nội bộ luôn được bảo vệ khỏi các truy cập trái phép, giảm thiểu rủi ro bị xâm nhập.



    5. Hiệu suất cao, tối ưu cho văn phòng hiện đại

    Cisco CBS350-48P-4G-EU hỗ trợ khả năng chuyển mạch với băng thông lên đến 104 Gbps, tốc độ chuyển tiếp dữ liệu 77.38 Mpps, đảm bảo đường truyền ổn định cho các tác vụ yêu cầu cao như:

    - Truyền tải file dung lượng lớn

    - Gọi điện VoIP nhiều đầu cuối

    - Họp trực tuyến đa luồng HD

    - Streaming video giám sát liên tục

    Thiết bị hoạt động ổn định với khả năng làm mát thông minh, giúp giảm thiểu nhiệt độ và tiết kiệm điện năng.



    Liên Hệ Ngay Để Được Tư Vấn & Đặt Hàng

     Liên hệ ngay với Hợp Thành Thịnh để đặc hàng và được tư vấn miễn phí. Ngoài ra Hợp Thành Thịnh còn cung cấp thêm các hãng như: Juniper Networks, HPE Aruba, TP-Link,...Không chỉ cung cấp sản phẩm, chúng tôi còn có dịch vụ sửa chữa chuyên nghiệp sau bảo hành cho các thiết bị như: Màn hình, thiết bị mạng, máy in, máy tính, máy chiếu, ups,... Đồng hành và hỗ trợ tận tâm cho các anh em kỹ thuật, IT, và các cửa hàng tin học.



    Thông Số Kỹ Thuật

    Performance
    Capacity in Millions of Packets per Second (mpps) (64-byte packets) 77.38
    Switching Capacity in Gigabits per Second (Gbps) 104.0
    Layer 2 Switching
    Spanning Tree Protocol

    Standard 802.1d Spanning Tree support

    Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default

    Multiple Spanning Tree instances using 802.1s (MSTP); 8 instances are supported

    Per-VLAN Spanning Tree Plus (PVST+) and Rapid PVST+ (RPVST+); 126 instances are supported

    Port grouping/link aggregation

    Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)
    - Up to 8 groups
    - Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation

    VLAN

    Support for up to 4,094 VLANs simultaneously
    Port-based and 802.1Q tag-based VLANs; MAC-based VLAN; protocol-based VLAN; IP subnet-based VLAN
    Management VLAN
    Private VLAN with promiscuous, isolated, and community port
    Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks
    Guest VLAN, unauthenticated VLAN
    Dynamic VLAN assignment via RADIUS server along with 802.1x client authentication
    CPE VLAN

    Voice VLAN Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Auto voice capabilities deliver network wide zero-touch deployment of voice endpoints and call control devices
    Multicast TV VLAN Multicast TV VLAN allows the single multicast VLAN to be shared in the network while subscribers remain in separate VLANs. This feature is also known as Multicast VLAN Registration (MVR)
    VLAN Translation Support for VLAN One-to-One Mapping. In VLAN One-to-One Mapping, on an edge interface customer VLANs (C-VLANs) are mapped to service provider VLANs (S-VLANs) and the original C-VLAN tags are replaced by the specified S-VLAN
    Q-in-Q VLANs transparently cross a service provider network while isolating traffic among customers
    Selective Q-in-Q

    Selective Q-in-Q is an enhancement to the basic Q-in-Q feature and provides, per edge interface, multiple mappings of different C-VLANs to separate S-VLANs
    Selective Q-in-Q also allows configuring of Ethertype (Tag Protocol Identifier [TPID]) of the S-VLAN tag
    Layer 2 protocol tunneling over Q-in-Q is also supported

    Generic VLAN Registration Protocol (GVRP)/Generic Attribute Registration Protocol (GARP) Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP) enable automatic propagation and configuration of VLANs in a bridged domain
    Unidirectional Link Detection (UDLD) UDLD monitors physical connection to detect unidirectional links caused by incorrect wiring or cable/port faults to prevent forwarding loops and black holing of traffic in switched networks
    Dynamic Host Configuration Protocol (DHCP) Relay at Layer 2 Relay of DHCP traffic to DHCP server in different VLAN; works with DHCP Option 82
    Internet Group Management Protocol (IGMP) versions 1, 2, and 3 snooping IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 2K multicast groups (source-specific multicasting is also supported)
    IGMP Querier IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
    Head-of-Line (HOL) blocking HOL blocking prevention
    Loopback Detection Loopback detection provides protection against loops by transmitting loop protocol packets out of ports on which loop protection has been enabled. It operates independently of STP
    Layer 3

    IPv4 routing
    - Wirespeed routing of IPv4 packets
    - Up to 990 static routes and up to 128 IP interfaces
    IPv6 routing
    Layer 3 Interface
    -Configuration of Layer 3 interface on physical port, Link Aggregation (LAG), VLAN interface, or loopback interface
    Classless Interdomain Routing (CIDR)
    Policy-Based Routing (PBR)
    DHCP Server
    DHCP relay at Layer 3
    User Datagram Protocol (UDP) relay

    Security

    Secure Shell (SSH) Protocol
    Secure Sockets Layer (SSL)
    IEEE 802.1X (Authenticator role)
    Web-based authentication
    STP Bridge Protocol Data Unit (BPDU) Guard
    STP Root Guard
    STP loopback guard
    DHCP snooping
    IP Source Guard (IPSG)
    Dynamic ARP Inspection (DAI)
    IP/MAC/Port Binding (IPMB)
    Secure Core Technology (SCT)
    Secure Sensitive Data (SSD)
    Trustworthy systems
    Private VLAN
    Layer 2 isolation Private VLAN Edge (PVE) with community VLAN
    Port security
    RADIUS/TACACS+
    RADIUS accounting
    Storm control
    DoS prevention
    Multiple user privilege levels in CLI
    ACLs Support for up to 1,024 rules

    Management

    Web user interface
    SNMP
    Remote Monitoring (RMON)
    IPv4 and IPv6 dual stack
    Firmware upgrade
    Port mirroring
    VLAN mirroring
    DHCP (options 12, 66, 67, 82, 129, and 150)
    Secure Copy (SCP)
    Autoconfiguration with Secure Copy (SCP) file download
    Text-editable config files
    Smartports
    Auto Smartports
    Textview CLI
    Cloud services
    Embedded Probe for Cisco Business Dashboard
    Cisco Network Plug and Play (PnP) agent
    Localization
    Login banner
    Other management

    Power over Ethernet (PoE)
    Power Dedicated to PoE 370W
    Number of Ports That Support PoE 48
    Power consumption
    System Power Consumption 110V=60.77W
    220V=59.73W
    Power Consumption (with PoE) 110V=451.95W
    220V=445.85W
    Heat Dissipation (BTU/hr) 1,542.12
    Hardware
    Total System Ports 52 Gigabit Ethernet
    RJ-45 Ports 48 Gigabit Ethernet
    Combo Ports(RJ 45 + Small form-factor pluggable [SFP]) 4 SFP
    Console port Cisco Standard mini USB Type-B / RJ45 console port
    USB slot USB Type-A slot on the front panel of the switch for easy file and image management
    Buttons Reset button
    Cabling type Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T
    LEDs System, Link/Act, PoE, Speed
    Flash 256 MB
    CPU 800 MHz ARM
    Packet buffer 3 MB
    Environmental
    Unit dimensions (W x H x D) 445 x 350 x 44 mm (17.5 x 13.78 x 1.73 in)
    Unit weight 5.43 kg (11.97 lb)
    Power 100-240V 50-60 Hz, internal, universal
    Certification 23° to 122°F (-5° to 50°C)
    Storage temperature -13° to 158°F (-25° to 70°C)
    Operating humidity 10% to 90%, relative, noncondensing
    Storage humidity 10% to 90%, relative, noncondensing
    Acoustic noise and Mean Time Between Failure (MTBF)
    FAN  1
    Acoustic Noise 25°C: 37.3 dBA
    MTBF at 25°C (hours) 856,329
