    SWITCH CISCO

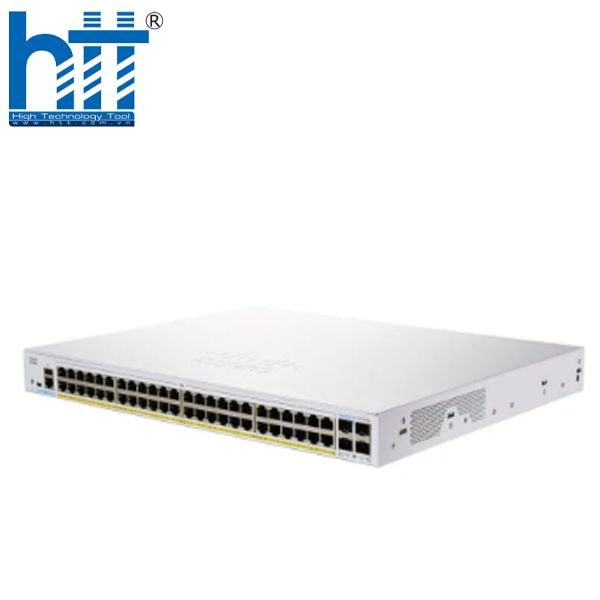

    CBS350-48T-4G-EU Cisco Business 350 Series 48X10/100/1000 ports.
    Giá bán: Liên hệ
    • Mã sản phẩm: MT-CBS350-48T-4G-EU
    • Tình trạng: Còn hàng
    • Giá trên đã bao gồm VAT, Giao hàng, lắp đặt, hướng dẫn và bảo hành tận nơi sử dụng
    • Bảo hành: 12 Tháng

      Cisco Business 350 Series CBS350-48T-4G, CBS350-48T-4G-EU, CBS350-48T-4G-xx 48x10/100/1000 ports Data, 4xGigabit SFP.

    CBS350-48T-4G-EU Cisco Business 350 Series 48X10/100/1000 ports.

    Bạn đang tìm một thiết bị chuyển mạch mạnh mẽ, dễ quản lý, tích hợp tính năng bảo mật tiên tiến và khả năng mở rộng linh hoạt cho hệ thống mạng doanh nghiệp? Cisco CBS350-48T-4G-EU chính là lựa chọn bạn không thể bỏ qua! Hãy cùng Hợp Thành Thịnh khám phá chi tiết về dòng switch quản lý chuyên nghiệp này.



    1. Hiệu suất mạnh mẽ với 48 cổng Gigabit và 4 uplink SFP

    Switch Cisco CBS350-48T-4G-EU được thiết kế với 48 cổng RJ45 10/100/1000 Mbps, hỗ trợ tốc độ truyền dữ liệu cao và ổn định, phù hợp cho môi trường văn phòng có mật độ thiết bị kết nối lớn. Bên cạnh đó, 4 cổng uplink SFP 1G giúp mở rộng kết nối linh hoạt giữa các tầng mạng hoặc liên kết với các thiết bị trung tâm một cách mượt mà và an toàn.

    Switch lý tưởng cho các ứng dụng đòi hỏi băng thông cao như VoIP, video HD, hoặc truyền dữ liệu dung lượng lớn trong thời gian thực.



    2. Quản lý dễ dàng, triển khai nhanh chóng

    CBS350-48T-4G-EU thuộc dòng switch được quản lý (Managed Switch), cho phép doanh nghiệp cấu hình chi tiết hệ thống mạng theo nhu cầu. Thiết bị đi kèm giao diện web trực quan, hỗ trợ CLI và SNMP, phù hợp cả với người mới quản trị và chuyên gia mạng.

    Với tính năng true stacking, bạn có thể kết nối nhiều switch CBS350 trong một hệ thống duy nhất, cấu hình và quản lý tập trung với một địa chỉ IP, giúp tiết kiệm thời gian và nâng cao hiệu quả giám sát.



    3. Bảo mật mạng toàn diện, bảo vệ hệ thống 24/7

    Cisco CBS350-48T-4G-EU tích hợp các công nghệ bảo mật mạng cấp doanh nghiệp như:

    - IEEE 802.1X – Xác thực truy cập mạng.

    - IPv6 First Hop Security – Ngăn chặn các cuộc tấn công giả mạo trên mạng IPv6.

    - DHCP Snooping, Dynamic ARP Inspection (DAI), IP Source Guard – Chống giả mạo địa chỉ IP, ngăn tấn công trung gian (MITM).

    - Access Control List (ACL) – Kiểm soát lưu lượng dựa trên chính sách.

    Với các cơ chế này, thiết bị đảm bảo mọi điểm truy cập vào mạng đều được kiểm tra và kiểm soát nghiêm ngặt.



    4. Quản lý lưu lượng lớp 3 – Tối ưu hóa hạ tầng mạng

    CBS350-48T-4G-EU hỗ trợ định tuyến lớp 3 (Static Routing, RIP, OSPF Lite), giúp doanh nghiệp phân đoạn mạng nội bộ thành các VLAN riêng biệt nhưng vẫn giao tiếp hiệu quả. Điều này giảm tải cho router trung tâm và tăng hiệu suất truyền dữ liệu trong mạng nội bộ.



    5. Thiết kế hiện đại, vận hành không tiếng ồn

    Thiết bị có thiết kế nhỏ gọn, màu trắng thanh lịch, phù hợp với không gian văn phòng hiện đại. Đặc biệt, CBS350-48T-4G-EU sử dụng hệ thống làm mát không quạt (fanless), giúp thiết bị hoạt động êm ái, không gây tiếng ồn trong môi trường làm việc.



    6. Tối ưu năng lượng – Tiết kiệm chi phí vận hành

    Cisco tích hợp tiêu chuẩn IEEE 802.3az (Energy Efficient Ethernet) giúp switch tự động điều chỉnh mức tiêu thụ điện theo lưu lượng mạng thực tế. Điều này giúp tiết kiệm điện năng, giảm nhiệt lượng tỏa ra và kéo dài tuổi thọ thiết bị, đặc biệt quan trọng với các doanh nghiệp muốn tối ưu chi phí vận hành.



    7. Ứng dụng thực tiễn của CBS350-48T-4G-EU trong doanh nghiệp

    - Văn phòng vừa và lớn: Đáp ứng kết nối cho hàng chục thiết bị đầu cuối cùng lúc, giúp hệ thống hoạt động trơn tru.

    - Hệ thống camera giám sát: Cung cấp băng thông ổn định cho các thiết bị ghi hình độ phân giải cao.

    - Trường học, bệnh viện, khách sạn: Phân tách VLAN cho các bộ phận riêng biệt như quản trị, nhân viên, khách hàng.

    - Doanh nghiệp có nhiều chi nhánh: Kết nối và quản lý tập trung hệ thống switch tại các điểm cầu qua tính năng stacking.



    Liên Hệ Ngay Để Được Tư Vấn & Đặt Hàng

     Liên hệ ngay với Hợp Thành Thịnh để đặc hàng và được tư vấn miễn phí. Ngoài ra Hợp Thành Thịnh còn cung cấp thêm các hãng như: Juniper Networks, HPE Aruba, TP-Link,...Không chỉ cung cấp sản phẩm, chúng tôi còn có dịch vụ sửa chữa chuyên nghiệp sau bảo hành cho các thiết bị như: Màn hình, thiết bị mạng, máy in, máy tính, máy chiếu, ups,... Đồng hành và hỗ trợ tận tâm cho các anh em kỹ thuật, IT, và các cửa hàng tin học.



     Thông Số

    Performance
    Capacity in Millions of Packets per Second (mpps) (64-byte packets) 77.38
    Switching Capacity in Gigabits per Second (Gbps) 104.0
    Layer 2 Switching
    Spanning Tree Protocol

    Standard 802.1d Spanning Tree support

    Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default

    Multiple Spanning Tree instances using 802.1s (MSTP); 8 instances are supported

    Per-VLAN Spanning Tree Plus (PVST+) and Rapid PVST+ (RPVST+); 126 instances are supported

    Port grouping/link aggregation

    Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)
    - Up to 8 groups
    - Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation

    VLAN

    Support for up to 4,094 VLANs simultaneously
    Port-based and 802.1Q tag-based VLANs; MAC-based VLAN; protocol-based VLAN; IP subnet-based VLAN
    Management VLAN
    Private VLAN with promiscuous, isolated, and community port
    Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks
    Guest VLAN, unauthenticated VLAN
    Dynamic VLAN assignment via RADIUS server along with 802.1x client authentication
    CPE VLAN

    Voice VLAN Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Auto voice capabilities deliver network wide zero-touch deployment of voice endpoints and call control devices
    Multicast TV VLAN Multicast TV VLAN allows the single multicast VLAN to be shared in the network while subscribers remain in separate VLANs. This feature is also known as Multicast VLAN Registration (MVR)
    VLAN Translation Support for VLAN One-to-One Mapping. In VLAN One-to-One Mapping, on an edge interface customer VLANs (C-VLANs) are mapped to service provider VLANs (S-VLANs) and the original C-VLAN tags are replaced by the specified S-VLAN
    Q-in-Q VLANs transparently cross a service provider network while isolating traffic among customers
    Selective Q-in-Q

    Selective Q-in-Q is an enhancement to the basic Q-in-Q feature and provides, per edge interface, multiple mappings of different C-VLANs to separate S-VLANs
    Selective Q-in-Q also allows configuring of Ethertype (Tag Protocol Identifier [TPID]) of the S-VLAN tag
    Layer 2 protocol tunneling over Q-in-Q is also supported

    Generic VLAN Registration Protocol (GVRP)/Generic Attribute Registration Protocol (GARP) Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP) enable automatic propagation and configuration of VLANs in a bridged domain
    Unidirectional Link Detection (UDLD) UDLD monitors physical connection to detect unidirectional links caused by incorrect wiring or cable/port faults to prevent forwarding loops and black holing of traffic in switched networks
    Dynamic Host Configuration Protocol (DHCP) Relay at Layer 2 Relay of DHCP traffic to DHCP server in different VLAN; works with DHCP Option 82
    Internet Group Management Protocol (IGMP) versions 1, 2, and 3 snooping IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 2K multicast groups (source-specific multicasting is also supported)
    IGMP Querier IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
    Head-of-Line (HOL) blocking HOL blocking prevention
    Loopback Detection Loopback detection provides protection against loops by transmitting loop protocol packets out of ports on which loop protection has been enabled. It operates independently of STP
    Layer 3

    IPv4 routing
    - Wirespeed routing of IPv4 packets
    - Up to 990 static routes and up to 128 IP interfaces
    IPv6 routing
    Layer 3 Interface
    -Configuration of Layer 3 interface on physical port, Link Aggregation (LAG), VLAN interface, or loopback interface
    Classless Interdomain Routing (CIDR)
    Policy-Based Routing (PBR)
    DHCP Server
    DHCP relay at Layer 3
    User Datagram Protocol (UDP) relay

    Security

    Secure Shell (SSH) Protocol
    Secure Sockets Layer (SSL)
    IEEE 802.1X (Authenticator role)
    Web-based authentication
    STP Bridge Protocol Data Unit (BPDU) Guard
    STP Root Guard
    STP loopback guard
    DHCP snooping
    IP Source Guard (IPSG)
    Dynamic ARP Inspection (DAI)
    IP/MAC/Port Binding (IPMB)
    Secure Core Technology (SCT)
    Secure Sensitive Data (SSD)
    Trustworthy systems
    Private VLAN
    Layer 2 isolation Private VLAN Edge (PVE) with community VLAN
    Port security
    RADIUS/TACACS+
    RADIUS accounting
    Storm control
    DoS prevention
    Multiple user privilege levels in CLI
    ACLs Support for up to 1,024 rules

    Management

    Web user interface
    SNMP
    Remote Monitoring (RMON)
    IPv4 and IPv6 dual stack
    Firmware upgrade
    Port mirroring
    VLAN mirroring
    DHCP (options 12, 66, 67, 82, 129, and 150)
    Secure Copy (SCP)
    Autoconfiguration with Secure Copy (SCP) file download
    Text-editable config files
    Smartports
    Auto Smartports
    Textview CLI
    Cloud services
    Embedded Probe for Cisco Business Dashboard
    Cisco Network Plug and Play (PnP) agent
    Localization
    Login banner
    Other management

    Power consumption
    System Power Consumption 110V=48.27W
    220V=48.64W
    Power Consumption (with PoE) N/A
    Heat Dissipation (BTU/hr) 165.96
    Hardware
    Total System Ports 52 Gigabit Ethernet
    RJ-45 Ports 48 Gigabit Ethernet
    Combo Ports(RJ 45 + Small form-factor pluggable [SFP]) 4 SFP
    Console port Cisco Standard mini USB Type-B / RJ45 console port
    USB slot USB Type-A slot on the front panel of the switch for easy file and image management
    Buttons Reset button
    Cabling type Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T
    LEDs System, Link/Act, PoE, Speed
    Flash 256 MB
    CPU 800 MHz ARM
    Packet buffer 1.5 MB
    Environmental
    Unit dimensions (W x H x D) 445 x 273 x 44 mm (17.5 x 10.73 x 1.73 in)
    Unit weight 3.95 kg (8.71 lb)
    Power 100-240V 50-60 Hz, internal, universal
    Certification 23° to 122°F (-5° to 50°C)
    Storage temperature -13° to 158°F (-25° to 70°C)
    Operating humidity 10% to 90%, relative, noncondensing
    Storage humidity 10% to 90%, relative, noncondensing
    Acoustic noise and Mean Time Between Failure (MTBF)
    FAN  Fanless
    Acoustic Noise N/A
    MTBF at 25°C (hours) 1,452,667
