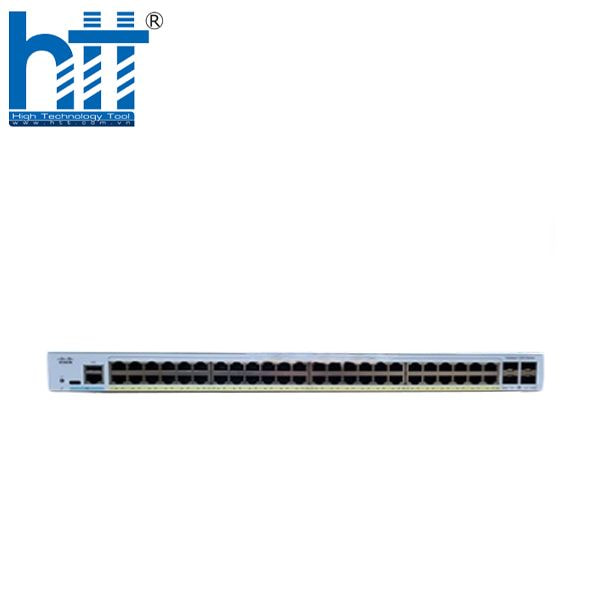

    Switch Cisco C1200-48P-4G 48-Ports GE PoE+ 375W, 4 SFP Uplink
    Giá bán: Liên hệ
    • Mã sản phẩm: MT-C1200-48P-4G
    • Tình trạng: Còn hàng
    • Giá trên đã bao gồm VAT, Giao hàng, lắp đặt, hướng dẫn và bảo hành tận nơi sử dụng
    • Bảo hành: 12 Tháng

      - Switch Access Cisco C1200-48P-4G 52-Ports Gigabit Ethernet

      - 48x 10/100/1000 PoE+ ports with 375W power budget

      - 4x Gigabit SFP

      - Switch type: Layer 2, Rack-mountable

      - Switching capacity: 104 Gbps

      - Forwarding rate: 77.38 mpps

      - Console port: RJ-45 console and USB Type C port.

      - Management: CLI, SSH, Telnet, Web Gui, App mobile, Cloud

    Switch Cisco C1200-48P-4G 48-Ports GE PoE+ 375W, 4 SFP Uplink

    Bạn đang tìm kiếm một thiết bị chuyển mạch mạnh mẽ, đáng tin cậy, có khả năng cấp nguồn PoE+ và hỗ trợ mạng Layer 3 cho hệ thống CNTT của doanh nghiệp? Hãy cùng Hợp Thành Thịnh khám phá Switch Cisco Catalyst C1200-48P-4G – sản phẩm hội tụ hiệu suất cao, khả năng quản lý tối ưu và bảo mật mạng toàn diện, giúp doanh nghiệp của bạn xây dựng một hệ thống hạ tầng mạng hiện đại, linh hoạt và tiết kiệm.



    1. Tổng quan về Cisco C1200-48P-4G

    Cisco C1200-48P-4G là thiết bị chuyển mạch Gigabit Layer 3 được quản lý đầy đủ, thuộc dòng Cisco Catalyst C1200 series. Switch có 48 cổng RJ45 Gigabit hỗ trợ PoE+ với tổng công suất cấp nguồn lên tới 375W, phù hợp cho việc triển khai các thiết bị như camera IP, điểm truy cập Wi-Fi, điện thoại IP... Bên cạnh đó, sản phẩm còn được trang bị 4 cổng uplink quang SFP giúp mở rộng và kết nối đến hệ thống mạng trục một cách linh hoạt và hiệu quả.

    - CPU lõi kép 1.4GHz, RAM 1GB DDR – mạnh gấp 4 lần thế hệ trước

    - Tích hợp tính năng định tuyến Layer 3

    - Hỗ trợ nhiều tính năng bảo mật và quản lý doanh nghiệp



    2. Những ưu điểm nổi bật của Switch Cisco C1200-48P-4G

    2.1. Cấu hình phần cứng mạnh mẽ

    Cisco trang bị cho C1200-48P-4G bộ vi xử lý lõi kép và bộ nhớ DDR lên đến 1GB, giúp:

    - Tăng tốc độ truyền dữ liệu và xử lý các gói tin nhanh chóng

    - Đảm bảo hoạt động ổn định, ít gián đoạn trong mọi tình huống sử dụng

    - Đáp ứng tốt nhu cầu doanh nghiệp với khối lượng dữ liệu lớn và nhiều thiết bị kết nối

    2.2. Hỗ trợ cấp nguồn PoE+ cho 48 cổng

    Với tổng công suất 375W, Switch có thể cấp nguồn qua Ethernet cho các thiết bị như:

    - Điện thoại IP, điểm truy cập Wi-Fi chuẩn 802.11ac

    - Camera IP quay quét (PTZ), thiết bị IoT doanh nghiệp

    - Giúp triển khai mạng đơn giản hơn, không cần thêm dây nguồn riêng biệt

    Tất cả chỉ với một sợi cáp mạng duy nhất cho cả dữ liệu và điện năng, tối ưu chi phí đầu tư.

    2.3. Quản lý dễ dàng, tích hợp với Cloud

    Switch Cisco C1200-48P-4G hỗ trợ:

    - Giao diện quản trị web hiện đại dễ sử dụng, phù hợp cả với kỹ sư và người mới

    - Kết nối và đồng bộ với ứng dụng Cloud của Cisco, hỗ trợ giám sát từ xa

    - Cấu hình qua ứng dụng di động, tiết kiệm thời gian và tối ưu quản lý

    Bạn không cần đội ngũ kỹ thuật lớn mà vẫn có thể quản lý hệ thống mạng hiệu quả.

    2.4. Định tuyến nội bộ thông minh (Layer 3 Routing)

    Tính năng định tuyến nội bộ giúp bạn:

    - Phân tách các nhóm VLAN trong hệ thống

    - Quản lý lưu lượng giữa các phòng ban độc lập

    - Giảm tải cho Router và tối ưu hiệu suất mạng

    Nhờ vậy, mạng của bạn linh hoạt, an toàn và xử lý dữ liệu mượt mà hơn.

    2.5. Bảo mật mạng toàn diện

    Switch tích hợp nhiều cơ chế bảo mật để bảo vệ hệ thống mạng khỏi các nguy cơ phổ biến:

    - IEEE 802.1X – kiểm soát quyền truy cập vào mạng

    - Chống tấn công từ chối dịch vụ (DoS)Danh sách kiểm soát truy cập (ACLs)

    - Bảo vệ các tài nguyên nhạy cảm và ngăn chặn truy cập trái phép

    2.6. Thiết kế linh hoạt, dễ triển khai

    Thiết bị có thiết kế chuẩn rack 1U, phù hợp với mọi không gian như:

    - Tủ mạng trung tâm dữ liệu, phòng máy chủ

    - Văn phòng mở, trung tâm đào tạo, cửa hàng bán lẻ

    Việc triển khai hệ thống nhanh chóng và dễ dàng nhờ các cổng RJ45 và SFP tiêu chuẩn.



    3. Các tình huống sử dụng phù hợp

    Cisco C1200-48P-4G có thể áp dụng hiệu quả trong nhiều mô hình doanh nghiệp:

    a. Kết nối máy tính để bàn tốc độ cao

    - Dành cho doanh nghiệp cần hiệu suất ổn định khi kết nối các máy tính, máy in, máy chủ

    - Hỗ trợ truyền tệp tin, ứng dụng nội bộ nhanh chóng, không gián đoạn

    b. Mở rộng hệ thống Wi-Fi doanh nghiệp

    - Cấp nguồn và kết nối cho các thiết bị Access Point chuẩn 802.11ac/ax

    - Tối ưu vùng phủ sóng không dây trong văn phòng, khách sạn, lớp học

    c. Truyền thông hợp nhất (IP phone, Video Call)

    - Tích hợp QoS ưu tiên luồng thoại, video

    - Tương thích hoàn hảo với các sản phẩm IP Phone Cisco



    Kết luận

    Switch Cisco Catalyst C1200-48P-4G là sự lựa chọn hoàn hảo cho doanh nghiệp đang tìm kiếm giải pháp chuyển mạch mạnh mẽ, cấp nguồn linh hoạt qua Ethernet và tích hợp tính năng định tuyến Layer 3, trong khi vẫn tối ưu chi phí đầu tư.

    Thiết bị giúp doanh nghiệp xây dựng hệ thống mạng ổn định, dễ mở rộng, tiết kiệm chi phí, phù hợp với xu hướng hiện đại hóa hạ tầng CNTT hiện nay.



    Liên Hệ Ngay Để Được Tư Vấn & Đặt Hàng

    Đi cùng với đó công ty Hợp Thành Thịnh còn cung cấp thêm các hãng như: Juniper Networks, HPE Aruba, TP-Link,...Không chỉ cung cấp sản phẩm, chúng tôi còn có dịch vụ sửa chữa chuyên nghiệp sau bảo hành cho các thiết bị như: Màn hình, thiết bị mạng, máy in, máy tính, máy chiếu, ups,... Đồng hành và hỗ trợ tận tâm cho các anh em kỹ thuật, IT, và các cửa hàng tin học.



    Thông số kỹ thuật C1200-48P-4G

    Data sheet C1200-48P-4G
    Product specifications
    Model C1200-48P-4G
    Performance
    Capacity in millions of packets per second (mpps) (64-byte packets) 77.38
    Switching capacity in gigabits per second (Gbps) 104.0
    Layer 2 switching
    Spanning Tree Protocol (STP)

    Standard 802.1d spanning tree support

    Fast convergence using 802.1w (Rapid Spanning Tree Protocol [RSTP]), enabled by default

    Multiple spanning tree instances using 802.1s (MSTP); 8 instances are supported

    Per-VLAN Spanning Tree Plus (PVST+); 126 instances are supported

    Rapid PVST+ (RPVST+); 126 instances are supported

    Port grouping/link aggregation

    Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)

    ●  Up to 4 groups
    ●  Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad Link Aggregation Group (LAG)

    VLAN

    Support for up to 255 active VLANs simultaneously

    Port-based and 802.1Q tag-based VLANs

    Management VLAN

    Guest VLAN

    Auto Surveillance VLAN (ASV)

    Voice VLAN Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Voice Services Discovery Protocol (VSDP) delivers networkwide zero-touch deployment of voice endpoints and call control devices
    Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP) Enable automatically propagation and configuration of VLANs in a bridged domain
    Internet Group Management Protocol (IGMP) versions 1, 2, and 3 snooping Limits bandwidth-intensive multicast traffic to only the requesters; supports 255 multicast groups (source-specific multicasting is also supported)
    IGMP querier Used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
    Head-of-Line (HOL) blocking HOL blocking prevention
    Loopback detection Provides protection against loops by transmitting loop protocol packets out of ports on which loop protection has been enabled. It operates independently of STP
    Layer 3 routing
    IPv4 routing

    Wire-speed routing of IPv4 packets

    Up to 32 static routes and up to 16 IP interfaces

    IPv6 routing Wire-speed routing of IPv6 packets
    Layer 3 interface Configuration of Layer 3 interface on physical port, LAG, VLAN interface, or loopback interface
    Classless Interdomain Routing (CIDR) Support for CIDR
    Dynamic Host Configuration Protocol (DHCP) relay at Layer 3 Relay of DHCP traffic across IP domains
    User Datagram Protocol (UDP) relay Relay of broadcast information across Layer 3 domains for application discovery or relaying of Bootstrap Protocol (BootP)/DHCP packets
    Security
    Secure Sockets Layer (SSL) Encrypts all HTTPS traffic, allowing secure access to the browser-based management GUI in the switch
    SSH Protocol SSH is a secure replacement for Telnet traffic. Secure Copy (SCP) also uses SSH. SSH v1 and v2 are supported.
    IEEE 802.1X (authenticator role) RADIUS authentication, guest VLAN, single/multiple host mode, and single/multiple sessions
    STP loopback guard Provides additional protection against Layer 2 forwarding loops (STP loops)
    Secure Core Technology (SCT) Ensures that the switch will receive and process management and protocol traffic no matter how much traffic is received
    Secure Sensitive Data (SSD) A mechanism to manage sensitive data (such as passwords, keys, and so on) securely on the switch, populating this data to other devices and a secure auto-configuration. Access to view the sensitive data as plain text or encrypted is provided according to the user-configured access level and the access method of the user
    Trustworthy systems

    Trustworthy systems provide a highly secure foundation for Cisco products

    Run-time defenses (Executable Space Protection [X-Space], Address Space Layout Randomization [ASLR], Built-In Object Size Checking [BOSC])

    Port security Ability to lock source MAC addresses to ports and limit the number of learned MAC addresses
    RADIUS Supports RADIUS authentication for management access. Switch functions as a client
    Storm control Broadcast, multicast, and unknown unicast
    DoS prevention DoS attack prevention
    Multiple user privilege levels in CLI Level 1, 7, and 15 privilege levels
    ACLs

    Support for up to 512 rules

    Drop or rate limit based on source and destination MAC, VLAN ID, IPv4 or IPv6 address, IPv6 flow label, protocol, port, Differentiated Services Code Point (DSCP)/IP precedence, TCP/UDP source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, IGMP packets, TCP flag; ACL can be applied on both ingress and egress sides

    Time-based ACLs supported

    Quality of service
    Priority levels 8 hardware queues
    Scheduling Strict priority and Weighted Round-Robin (WRR) queue assignment based on DSCP and Class of Service (802.1p/CoS)
    Class of service Port based, 802.1p VLAN priority based, IPv4/v6 IP precedence/Type of Service (ToS)/DSCP based, Differentiated Services (DiffServ), classification and re-marking ACLs, trusted QoS
    Rate limiting Ingress policer, egress shaping and rate control per VLAN, per port, and flow based
    Congestion avoidance A TCP congestion avoidance algorithm is required to reduce and prevent global TCP loss synchronization
    Standards
    Standards IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad Link Aggregation Control Protocol, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, IEEE 802.3 ad LACP, IEEE 802.1D (STP), IEEE 802.1Q/p VLAN, IEEE 802.1w RSTP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, IEEE 802.3at, RFC 768, RFC 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 879, RFC 896, RFC 826, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, RFC 919, RFC 920, RFC 922, RFC 950, RFC 951, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1157, RFC 1213, RFC 1215, RFC 1286, RFC 1350, RFC 1442, RFC 1451, RFC 1493, RFC 1533, RFC 1541, RFC 1542, RFC 1573, RFC 1624, RFC 1643, RFC 1700, RFC 1757, RFC 1867, RFC 1907, RFC 2011, RFC 2012, RFC 2013, RFC 2030, RFC 2131, RFC 2132, RFC 2233, RFC 2576, RFC 2616, RFC 2618, RFC 2665, RFC 2666, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 3164, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 3416, RFC 4330
    IPv6
    IPv6

    IPv6 host mode

    IPv6 over Ethernet

    Dual IPv6/IPv4 stack

    IPv6 Neighbor Discovery (ND)

    IPv6 stateless address auto-configuration

    Path Maximum Transmission Unit (MTU) discovery

    Duplicate Address Detection (DAD)

    ICMP version 6

    IPv6 over IPv4 network with Intrasite Automatic Tunnel Addressing Protocol (ISATAP) support

    USGv6 and IPv6 Gold Logo certified

    IPv6 QoS Prioritizes IPv6 packets in hardware
    IPv6 ACL Drop or rate-limit IPv6 packets in hardware
    Multicast Listener Discovery (MLD v1/2) snooping Delivers IPv6 multicast packets only to the required receivers
    IPv6 applications Web/SSL, Telnet server/SSH, Ping, Traceroute, Simple Network Time Protocol (SNTP), Trivial File Transfer Protocol (TFTP), Simple Network Management Protocol (SNMP), RADIUS, Syslog, DNS client, DHCP client, DHCP auto-configuration
    IPv6 RFCs supported

    RFC 4443 (which obsoletes RFC 2463): ICMPv6

    RFC 4291 (which obsoletes RFC 3513): IPv6 address architecture

    RFC 4291: IPv6 addressing architecture

    RFC 2460: IPv6 specification

    RFC 4861 (which obsoletes RFC 2461): neighbor discovery for IPv6

    RFC 4862 (which obsoletes RFC 2462): IPv6 stateless address auto-configuration

    RFC 1981: path MTU discovery

    RFC 4007: IPv6 scoped address architecture

    RFC 3484: default address selection mechanism

    RFC 5214 (which obsoletes RFC 4214): ISATAP tunneling

    RFC 4293: MIB IPv6: textual conventions and general group

    RFC 3595: textual conventions for IPv6 flow label

    Management
    Cisco Business Dashboard Support for embedded probe for Cisco Business Dashboard running on the switch. Eliminates the need to set up a separate hardware or virtual machine for the Cisco Business Dashboard probe onsite
    Cisco Business mobile app Mobile app for Cisco Business switch and wireless products. Helps to set up a local network in minutes and provide easy management at your fingertips.
    Cisco Network Plug and Play (PnP) agent

    The Cisco Network PnP solution provides a simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or for provisioning updates to an existing network. The solution provides a unified approach to provision Cisco routers, switches, and wireless devices with a near-zero-touch deployment experience.

    Supports Cisco PnP Connect

    Web user interface

    Built-in switch configuration utility for easy browser-based device configuration (HTTP/HTTPS). Supports configuration, wizards, system dashboard, system maintenance, and monitoring

    Basic and advanced mode for maximum operational efficiency

    SNMP SNMP versions 1, 2c, and 3 with support for traps, and SNMP v3 User-Based Security Model (USM)
    Remote Monitoring (RMON) Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis
    IPv4 and IPv6 dual stack Coexistence of both protocol stacks to ease migration
    Firmware upgrade

    Web browser upgrade (HTTP/HTTPS) and TFTP and upgrade over SCP running over SSH

    Dual images for resilient firmware upgrades

    Port mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to 4 source ports can be mirrored to one destination port
    VLAN mirroring Traffic from a VLAN can be mirrored to a port for analysis with a network analyzer or RMON probe. Up to 4 source VLANs can be mirrored to one destination port
    DHCP (options 12, 59, 60, 66, 67, 125, 129, and 150) DHCP options facilitate tighter control from a central point (DHCP server) to obtain IP address, auto-configuration (with configuration and image file download), DHCP relay, and hostname
    Secure Copy (SCP) Securely transfers files to and from the switch
    Auto-configuration with SCP file download Enables mass deployment with protection of sensitive data
    Text-editable configurations Configuration files can be edited with a text editor and downloaded to another switch, facilitating easier mass deployment
    Smartports Simplified configuration of QoS and security capabilities
    Auto Smartports Automatically applies the intelligence delivered through the Smartports roles to the port based on the devices discovered over Cisco Discovery Protocol or LLDP-MED. This facilitates zero-touch deployments
    Text view CLI Scriptable CLI. A full CLI as well as a menu-based CLI is supported. User privilege levels 1, 7, and 15 are supported for the CLI
    Localization Localization of GUI and documentation into multiple languages
    Login banner Configurable multiple banners for web as well as CLI
    Other management Traceroute, single IP management, HTTP/HTTPS, RADIUS, port mirroring, TFTP upgrade, DHCP client, SNTP, cable diagnostics, Ping, syslog, Telnet client (SSH secure support), automatic time settings from management station
    Green (power efficiency) Automatically turns power off on an RJ-45 port when the detecting link down. Active mode is resumed without loss of any packets when the switch detects the link is up
    Cable length detection Adjusts the signal strength based on the cable length. Reduces the power consumption for shorter cables
    EEE compliant (802.3az) Supports IEEE 802.3az on all copper Gigabit Ethernet ports
    Disable port LEDs LEDs can be manually turned off to save energy
    Time-based port operation Link up or down based on user-defined schedule (when the port is administratively up)
    Time-based PoE PoE power can be on or off based on user-defined schedule to save energy
    Perpetual PoE Provides PoE power to connected powered devices while the device is rebooting
    General
    Jumbo frames Frame sizes up to 9000 bytes. The default MTU is 2000 bytes
    MAC table 8000 addresses
    Dying gasp Upon power loss/failure the switch can withstand >= 16 ms on detecting a 12V input drop
    Chip guard Detects tampering attempts and responds during boot-up
    Boot integrity Boot integrity visibility allows Cisco's platform identity and software integrity information to be visible and actionable
    Discovery
    Bonjour The switch advertises itself using the Bonjour protocol
    Link Layer Discovery Protocol (LLDP) (802.1ab) with LLDP-Media Endpoint Discovery (MED) extensions LLDP allows the switch to advertise its identification, configuration, and capabilities to neighboring devices that store the data in a MIB. LLDP-MED is an enhancement to LLDP that adds the extensions needed for IP phones
    Cisco Discovery Protocol The switch advertises itself using the Cisco Discovery Protocol. It also learns the connected device and its characteristics using Cisco Discovery Protocol
    Power over Ethernet (PoE)
    Power dedicated to PoE

    375W
    Number of ports that support PoE 48
    Hardware
    Power consumption (worst case)
    System power consumption

    110V=60.77W

    220V=59.73W

    Power consumption (with PoE)

    110V=451.95W

    220V=445.85W

    Heat dissipation (BTU/hr) 1,542.12
    Ports
    Total system ports 52x Gigabit Ethernet
    RJ-45 ports 48x Gigabit Ethernet
    Combo ports (RJ-45 + Small Form-Factor Pluggable [SFP]) 4x SFP
    Console port

    Cisco Standard RJ-45 console and USB Type C port

    USB port USB Type C port on the front panel of the switch for easy file and image management as well as console port
    Buttons Reset button
    Cabling type Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T
    LEDs System, Link/Act, PoE, Speed
    Flash 512 MB
    CPU Dual-core ARM at 1.4 GHz
    DRAM 1 GB DDR4
    Packet buffer 3 MB
    Environmental
    Unit dimensions
    (W x D x H)
    445 x 288 x 44 mm (17.5 x 11.33 x 1.73 in)
    Unit weight 3.95 kg (8.71 lb)
    Power 100 to 240V 50 to 60 Hz, internal, universal
    Certifications UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
    Operating temperature

    32° to 122°F (0° to 50°C) for C1200-8T-D

    23° to 122°F (-5° to 50°C) for other models

    Storage temperature -13° to 158°F (-25° to 70°C)
    Operating humidity 10% to 90%, relative, noncondensing
    Storage humidity 10% to 90%, relative, noncondensing
    Acoustic noise and mean time between failures (MTBF)
    Fan (number) 1
    Acoustic noise 25°C: 29.7 dBA
    MTBF at 25°C (hours) 1,452,667
    Warranty Limited lifetime

    Sản phẩm cùng hãng

    Hotline Báo giá nhanh Gmail Zalo
    Hotline Báo giá nhanh Gmail Zalo
    TOP
