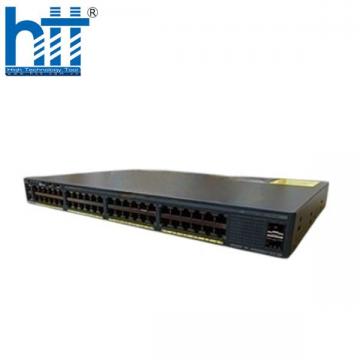

     Catalyst 2960S 48 GigE, 2 x SFP LAN Lite

       Catalyst 2960S 48 GigE, 2 x SFP LAN Lite
    • Giá bán:

    Cisco ASA5510-K8 Appliance with SW, 3FE, DES

      Cisco ASA5510-K8 Appliance with SW, 3FE, DES
    • Giá bán:

    Cisco CISCO2901-SEC/K9 Security Bundle w/SEC license PAK

      Cisco CISCO2901-SEC/K9 Security Bundle w/SEC license PAK
    • Giá bán:

    Cisco WS-C2960-48TT-L Catalyst 2960 48 10/100 Ports + 2 1000BT LAN Base Image

      Cisco WS-C2960-48TT-L Catalyst 2960 48 10/100 Ports + 2 1000BT LAN Base Image
    • Giá bán:
    SẢN PHẨM NỔI BẬT

    Catalyst 3560X 48 port data IP Services

      Catalyst 3560X 48 port data IP Services
    • Giá bán:

    Catalyst 3560X 48 port data IP Base

      Catalyst 3560X 48  port data IP Base
    • Giá bán:

    Catalyst 3560X 24 port data IP Services

      Catalyst 3560X 24 port data IP Services
    • Giá bán:

    Catalyst 3560X 24 port data IP Base .

      Catalyst 3560X 24 port data IP Base .
    • Giá bán:

     Catalyst 2960S 48 GigE, 2 x SFP LAN Lite

       Catalyst 2960S 48 GigE, 2 x SFP LAN Lite
    • Giá bán:

    Cisco ASA5505-50-BUN-K8 Appliance with SW, 50 Users, 8 ports, DES

      Cisco ASA5505-50-BUN-K8 Appliance with SW, 50 Users, 8 ports, DES
    • Giá bán:

    Cisco CISCO1941-HSEC+/K9 VPN ISM module HSEC bundles for 1941 ISR platform

      Cisco CISCO1941-HSEC+/K9 VPN ISM module HSEC bundles for 1941 ISR platform
    • Giá bán:

    Cisco GLC-ZX-SM 1000BASE-ZX SFP

      Cisco GLC-ZX-SM 1000BASE-ZX SFP
    • Giá bán:

    Cisco GLC-T Compatible 1000BASE-TX SFP Transceiver Module

      Cisco GLC-T Compatible 1000BASE-TX SFP Transceiver Module
    • Giá bán:

    Cisco GLC-SX-MM GE SFP, LC connector SX transceiver

      Cisco GLC-SX-MM GE SFP, LC connector SX transceiver
    • Giá bán:
    HỖ TRỢ KHÁCH HÀNG
    Liên kết Website
    Kết nối facebook
    HTT
    QUẢNG CÁO

    SWITCH CISCO

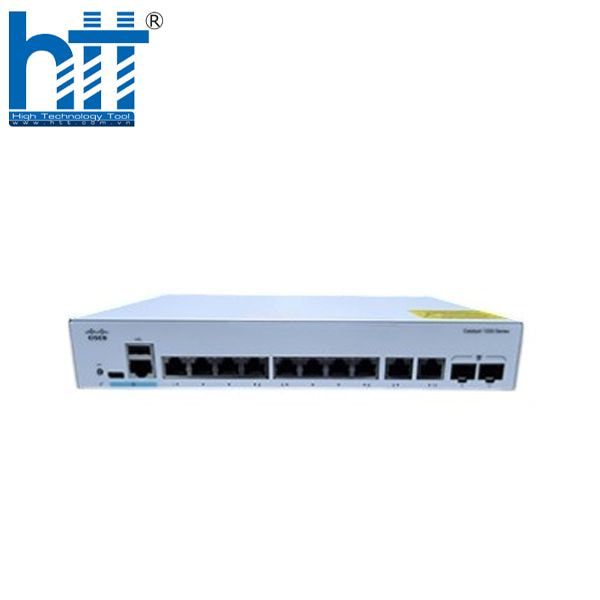

    Switch Cisco C1200-8T-E-2G 8x 10/100/1000, 2x Gigabit copper/SFP combo ports
    Giá bán: Liên hệ
    • Mã sản phẩm: MT-C1200-8T-E-2G
    • Tình trạng: Còn hàng
    • Giá trên đã bao gồm VAT, Giao hàng, lắp đặt, hướng dẫn và bảo hành tận nơi sử dụng
    • Bảo hành: 12 Tháng

      - Switch Cisco Catalyst C1200-8T-E-2G 10-Ports GE

      - Tốc độ LAN: Gigabit  (1000Mbps)

      - Cổng kết nối: 8-ports RJ45, 2x Combo ports (RJ-45 + SFP)

      - Kiểu switch: Switch Rack-mountable Gigabit Ethernet (1000Mbps)

      - Tản nhiệt: không quạt tự làm mát

      - Khả năng chuyển mạch: 20 Gbps

      - Khả năng chuyển tiếp gói tin: 14.88 mpps

      - Quản trị switch: CLi Console RJ45/ USB type C Ports, giao diện web, App mobile

    Switch Cisco C1200-8T-E-2G 8x 10/100/1000, 2x Gigabit copper/SFP combo ports

    Bạn đang tìm kiếm một thiết bị chuyển mạch nhỏ gọn, đáng tin cậy, giá cả hợp lý nhưng vẫn đủ tính năng bảo mật và hiệu suất mạnh mẽ cho văn phòng hay doanh nghiệp vừa và nhỏ? Hãy cùng Hợp Thành Thịnh khám phá Switch Cisco C1200-8T-E-2G, thiết bị lý tưởng cho hệ thống mạng cơ bản nhưng yêu cầu độ ổn định và dễ quản lý từ thương hiệu Cisco danh tiếng.

    1. Tổng quan sản phẩm

    Switch Cisco C1200-8T-E-2G là một trong những mẫu switch mới thuộc dòng Catalyst 1200 Series, nổi bật với thiết kế nhỏ gọn, không quạt, yên tĩnh và dễ triển khai tại nhiều môi trường khác nhau. Thiết bị có:

    - 8 cổng Gigabit Ethernet RJ45 hỗ trợ tốc độ 10/100/1000 Mbps

    - 2 cổng combo RJ45/SFP linh hoạt làm uplink mở rộng kết nối tốc độ cao

    - Hỗ trợ các tính năng Layer 2 và Layer 3, bao gồm định tuyến tĩnh

    - Quản lý dễ dàng qua Cisco Business Dashboard, giao diện web, CLI hoặc ứng dụng di động

    Đây là lựa chọn phù hợp cho các văn phòng, lớp học, chi nhánh nhỏ cần kết nối hiệu quả và bảo mật mà không cần đầu tư quá lớn.



    2. Những tính năng nổi bật của C1200-8T-E-2G

    2.1 Dễ dàng cấu hình và quản lý

    Cisco tích hợp các phương thức quản lý đa dạng trên thiết bị:

    - Giao diện web thân thiện, trực quan

    - Hỗ trợ ứng dụng quản trị trên di động

    - Cisco Business Dashboard – nền tảng quản lý tập trung, đồng bộ các thiết bị Cisco Business

    - CLI thông qua cổng console hoặc SSH, Telnet cho kỹ sư mạng chuyên sâu

    Tất cả mang lại khả năng thiết lập, vận hành và giám sát nhanh chóng mà không yêu cầu kỹ thuật viên có kiến thức chuyên sâu.

    2.2 Hiệu suất mạnh mẽ, hoạt động tin cậy

    Switch C1200-8T-E-2G cung cấp hiệu suất mạng ổn định, giảm độ trễ, tăng tốc độ truyền tệp và cải thiện hiệu quả làm việc nhóm. Phù hợp cho các môi trường có nhiều thiết bị như máy tính, IP phone, camera IP, máy in dùng chung hoặc thiết bị IoT.

    2.3 Hỗ trợ định tuyến Layer 3 cơ bản

    Thiết bị hỗ trợ định tuyến tĩnh cho phép phân đoạn mạng hiệu quả thông qua các VLAN, đồng thời đảm bảo các ứng dụng nội bộ giao tiếp mượt mà mà không cần định tuyến qua thiết bị ngoài. Từ đó giảm tải cho router chính và tối ưu tốc độ xử lý.

    2.4 Tăng cường bảo mật mạng

    Cisco tích hợp nhiều công nghệ bảo mật để bảo vệ dữ liệu và ngăn chặn truy cập trái phép:

    - IEEE 802.1X – Kiểm soát truy cập dựa trên danh tính

    - ACL mở rộng – Giới hạn quyền truy cập đến các phần nhạy cảm trong mạng

    - Chống tấn công DoS – Bảo vệ hệ thống khỏi các cuộc tấn công làm gián đoạn dịch vụ

    Hỗ trợ DHCP snooping, IP Source Guard và các cơ chế bảo vệ lớp liên kết dữ liệu

    2.5 Thiết kế linh hoạt, tối ưu không gian

    Thiết kế không quạt giúp switch vận hành êm ái, tiết kiệm năng lượng và phù hợp lắp đặt tại các vị trí yêu cầu độ yên tĩnh như văn phòng, lớp học. Đồng thời, kích thước nhỏ gọn phù hợp cho việc lắp trong tủ mạng hoặc gắn tường linh hoạt.

    2.6 Khả năng mở rộng linh hoạt

    Hai cổng combo RJ45/SFP cho phép mở rộng mạng dễ dàng với các thiết bị mạng khác thông qua cáp quang hoặc cáp đồng, đáp ứng kết nối từ xa đến các switch tầng phân phối hoặc thiết bị uplink.



    3. Ứng dụng thực tế

    Switch Cisco C1200-8T-E-2G phù hợp với các mô hình như:

    - Văn phòng doanh nghiệp nhỏ từ 5–20 người dùng

    - Chi nhánh công ty cần mạng ổn định và bảo mật

    - Lớp học, trung tâm đào tạo cần kết nối ổn định cho các thiết bị đầu cuối

    - Hệ thống camera an ninh và điện thoại IP cần cấp nguồn qua switch

    - Các mô hình triển khai hệ thống IoT nhỏ

    Liên Hệ Ngay Để Được Tư Vấn & Đặt Hàng

    Đi cùng với đó công ty Hợp Thành Thịnh còn cung cấp thêm các hãng như: Juniper Networks, HPE Aruba, TP-Link,...Không chỉ cung cấp sản phẩm, chúng tôi còn có dịch vụ sửa chữa chuyên nghiệp sau bảo hành cho các thiết bị như: Màn hình, thiết bị mạng, máy in, máy tính, máy chiếu, ups,... Đồng hành và hỗ trợ tận tâm cho các anh em kỹ thuật, IT, và các cửa hàng tin học.

    Thông số kỹ thuật

    Datasheet C1200-8T-E-2G
    Product specifications
    Model C1200-8T-E-2G
    Performance
    Capacity in millions of packets per second (mpps) (64-byte packets) 14.88
    Switching capacity in gigabits per second (Gbps) 20
    Layer 2 switching
    Spanning Tree Protocol (STP)

    Standard 802.1d spanning tree support
    Fast convergence using 802.1w (Rapid Spanning Tree Protocol [RSTP]), enabled by default
    Multiple spanning tree instances using 802.1s (MSTP); 8 instances are supported
    Per-VLAN Spanning Tree Plus (PVST+); 126 instances are supported
    Rapid PVST+ (RPVST+); 126 instances are supported

    Port grouping/link aggregation

    Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)

    ●  Up to 4 groups
    ●  Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad Link Aggregation Group (LAG)

    VLAN

    Support for up to 255 active VLANs simultaneously
    Port-based and 802.1Q tag-based VLANs
    Management VLAN
    Guest VLAN
    Auto Surveillance VLAN (ASV)

    Voice VLAN Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Voice Services Discovery Protocol (VSDP) delivers networkwide zero-touch deployment of voice endpoints and call control devices
    Internet Group Management Protocol (IGMP) versions 1, 2, and 3 snooping Limits bandwidth-intensive multicast traffic to only the requesters; supports 255 multicast groups (source-specific multicasting is also supported)
    IGMP querier Used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
    Layer 3 routing
    IPv4 routing

    Wire-speed routing of IPv4 packets
    Up to 32 static routes and up to 16 IP interfaces

    IPv6 routing Wire-speed routing of IPv6 packets
    Layer 3 interface Configuration of Layer 3 interface on physical port, LAG, VLAN interface, or loopback interface
    Classless Interdomain Routing (CIDR) Support for CIDR
    Dynamic Host Configuration Protocol (DHCP) relay at Layer 3 Relay of DHCP traffic across IP domains
    User Datagram Protocol (UDP) relay Relay of broadcast information across Layer 3 domains for application discovery or relaying of Bootstrap Protocol (BootP)/DHCP packets
    Security
    Secure Sockets Layer (SSL) Encrypts all HTTPS traffic, allowing secure access to the browser-based management GUI in the switch
    SSH Protocol SSH is a secure replacement for Telnet traffic. Secure Copy (SCP) also uses SSH. SSH v1 and v2 are supported.
    IEEE 802.1X (authenticator role) RADIUS authentication, guest VLAN, single/multiple host mode, and single/multiple sessions
    STP loopback guard Provides additional protection against Layer 2 forwarding loops (STP loops)
    Secure Core Technology (SCT) Ensures that the switch will receive and process management and protocol traffic no matter how much traffic is received
    Secure Sensitive Data (SSD) A mechanism to manage sensitive data (such as passwords, keys, and so on) securely on the switch, populating this data to other devices and a secure auto-configuration. Access to view the sensitive data as plain text or encrypted is provided according to the user-configured access level and the access method of the user
    Trustworthy systems

    Trustworthy systems provide a highly secure foundation for Cisco products

    Run-time defenses (Executable Space Protection [X-Space], Address Space Layout Randomization [ASLR], Built-In Object Size Checking [BOSC])

    Port security Ability to lock source MAC addresses to ports and limit the number of learned MAC addresses
    RADIUS Supports RADIUS authentication for management access. Switch functions as a client
    Storm control Broadcast, multicast, and unknown unicast
    DoS prevention DoS attack prevention
    Multiple user privilege levels in CLI Level 1, 7, and 15 privilege levels
    ACLs

    Support for up to 512 rules
    Drop or rate limit based on source and destination MAC, VLAN ID, IPv4 or IPv6 address, IPv6 flow label, protocol, port, Differentiated Services Code Point (DSCP)/IP precedence, TCP/UDP source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, IGMP packets, TCP flag; ACL can be applied on both ingress and egress sides
    Time-based ACLs supported

    Quality of service
    Priority levels 8 hardware queues
    Scheduling Strict priority and Weighted Round-Robin (WRR) queue assignment based on DSCP and Class of Service (802.1p/CoS)
    Class of service Port based, 802.1p VLAN priority based, IPv4/v6 IP precedence/Type of Service (ToS)/DSCP based, Differentiated Services (DiffServ), classification and re-marking ACLs, trusted QoS
    Rate limiting Ingress policer, egress shaping and rate control per VLAN, per port, and flow based
    Congestion avoidance A TCP congestion avoidance algorithm is required to reduce and prevent global TCP loss synchronization
    Standards
    IPv6
    IPv6

    IPv6 host mode
    IPv6 over Ethernet
    Dual IPv6/IPv4 stack
    IPv6 Neighbor Discovery (ND)
    IPv6 stateless address auto-configuration
    Path Maximum Transmission Unit (MTU) discovery
    Duplicate Address Detection (DAD)
    ICMP version 6
    IPv6 over IPv4 network with Intrasite Automatic Tunnel Addressing Protocol (ISATAP) support
    USGv6 and IPv6 Gold Logo certified

    IPv6 QoS Prioritizes IPv6 packets in hardware
    IPv6 ACL Drop or rate-limit IPv6 packets in hardware
    Multicast Listener Discovery (MLD v1/2) snooping Delivers IPv6 multicast packets only to the required receivers
    IPv6 applications Web/SSL, Telnet server/SSH, Ping, Traceroute, Simple Network Time Protocol (SNTP), Trivial File Transfer Protocol (TFTP), Simple Network Management Protocol (SNMP), RADIUS, Syslog, DNS client, DHCP client, DHCP auto-configuration
    IPv6 RFCs supported

    RFC 4443 (which obsoletes RFC 2463): ICMPv6
    RFC 4291 (which obsoletes RFC 3513): IPv6 address architecture
    RFC 4291: IPv6 addressing architecture
    RFC 2460: IPv6 specification
    RFC 4861 (which obsoletes RFC 2461): neighbor discovery for IPv6
    RFC 4862 (which obsoletes RFC 2462): IPv6 stateless address auto-configuration
    RFC 1981: path MTU discovery
    RFC 4007: IPv6 scoped address architecture
    RFC 3484: default address selection mechanism
    RFC 5214 (which obsoletes RFC 4214): ISATAP tunneling
    RFC 4293: MIB IPv6: textual conventions and general group
    RFC 3595: textual conventions for IPv6 flow label

    Management
    Cisco Business Dashboard Support for embedded probe for Cisco Business Dashboard running on the switch. Eliminates the need to set up a separate hardware or virtual machine for the Cisco Business Dashboard probe onsite
    Cisco Business mobile app Mobile app for Cisco Business switch and wireless products. Helps to set up a local network in minutes and provide easy management at your fingertips.
    Cisco Network Plug and Play (PnP) agent

    The Cisco Network PnP solution provides a simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or for provisioning updates to an existing network. The solution provides a unified approach to provision Cisco routers, switches, and wireless devices with a near-zero-touch deployment experience.

    Supports Cisco PnP Connect

    Web user interface

    Built-in switch configuration utility for easy browser-based device configuration (HTTP/HTTPS). Supports configuration, wizards, system dashboard, system maintenance, and monitoring. Basic and advanced mode for maximum operational efficiency

    SNMP SNMP versions 1, 2c, and 3 with support for traps, and SNMP v3 User-Based Security Model (USM)
    Remote Monitoring (RMON) Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis
    IPv4 and IPv6 dual stack Coexistence of both protocol stacks to ease migration
    Firmware upgrade

    Web browser upgrade (HTTP/HTTPS) and TFTP and upgrade over SCP running over SSH
    Dual images for resilient firmware upgrades

    Port mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to 4 source ports can be mirrored to one destination port
    VLAN mirroring Traffic from a VLAN can be mirrored to a port for analysis with a network analyzer or RMON probe. Up to 4 source VLANs can be mirrored to one destination port
    DHCP (options 12, 59, 60, 66, 67, 125, 129, and 150) DHCP options facilitate tighter control from a central point (DHCP server) to obtain IP address, auto-configuration (with configuration and image file download), DHCP relay, and hostname
    Secure Copy (SCP) Securely transfers files to and from the switch
    Auto-configuration with SCP file download Enables mass deployment with protection of sensitive data
    Text-editable configurations Configuration files can be edited with a text editor and downloaded to another switch, facilitating easier mass deployment
    Smartports Simplified configuration of QoS and security capabilities
    Auto Smartports Automatically applies the intelligence delivered through the Smartports roles to the port based on the devices discovered over Cisco Discovery Protocol or LLDP-MED. This facilitates zero-touch deployments
    Text view CLI Scriptable CLI. A full CLI as well as a menu-based CLI is supported. User privilege levels 1, 7, and 15 are supported for the CLI
    Localization Localization of GUI and documentation into multiple languages
    Login banner Configurable multiple banners for web as well as CLI
    Other management Traceroute, single IP management, HTTP/HTTPS, RADIUS, port mirroring, TFTP upgrade, DHCP client, SNTP, cable diagnostics, Ping, syslog, Telnet client (SSH secure support), automatic time settings from management station
    Green (power efficiency) Automatically turns power off on an RJ-45 port when the detecting link down. Active mode is resumed without loss of any packets when the switch detects the link is up
    Cable length detection Adjusts the signal strength based on the cable length. Reduces the power consumption for shorter cables
    EEE compliant (802.3az) Supports IEEE 802.3az on all copper Gigabit Ethernet ports
    Disable port LEDs LEDs can be manually turned off to save energy
    Time-based port operation Link up or down based on user-defined schedule (when the port is administratively up)
    Time-based PoE PoE power can be on or off based on user-defined schedule to save energy
    Perpetual PoE Provides PoE power to connected powered devices while the device is rebooting
    General
    Jumbo frames Frame sizes up to 9000 bytes. The default MTU is 2000 bytes
    MAC table 8000 addresses
    Dying gasp Upon power loss/failure the switch can withstand >= 16 ms on detecting a 12V input drop
    Chip guard Detects tampering attempts and responds during boot-up
    Boot integrity Boot integrity visibility allows Cisco's platform identity and software integrity information to be visible and actionable
    Discovery
    Bonjour The switch advertises itself using the Bonjour protocol
    Link Layer Discovery Protocol (LLDP) (802.1ab) with LLDP-Media Endpoint Discovery (MED) extensions LLDP allows the switch to advertise its identification, configuration, and capabilities to neighboring devices that store the data in a MIB. LLDP-MED is an enhancement to LLDP that adds the extensions needed for IP phones
    Cisco Discovery Protocol The switch advertises itself using the Cisco Discovery Protocol. It also learns the connected device and its characteristics using Cisco Discovery Protocol
    Hardware
    Power consumption (worst case)
    System power consumption

    110V=12.55W
    220V=12.56W

    Power consumption (with PoE) -
    Heat dissipation (BTU/hr) 42.86
    Ports
    RJ-45 ports 8x 10/100/1000 ports
    2x 1Gigabit copper/SFP combo ports
    Console port Cisco Standard RJ-45 console and USB Type C port
    Buttons Reset button
    Cabling type Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T
    LEDs System, Link/Act, PoE, Speed
    Flash 512 MB
    CPU Dual-core ARM at 1.4 GHz
    DRAM 1 GB DDR4
    Packet buffer 1.5 MB
    Environmental
    Unit dimensions (W x D x H) 268 x 185 x 44 mm (10.56 x 7.28 x 1.73 in)
    Unit weight 1.39 kg (3.06 lb)
    Power 100 to 240V 50 to 60 Hz
    Certifications UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
    Operating temperature 23° to 122°F (-5° to 50°C) for other models
    Storage temperature -13° to 158°F (-25° to 70°C)
    Operating humidity 10% to 90%, relative, noncondensing
    Storage humidity 10% to 90%, relative, noncondensing
    Fan (number) Fanless
    MTBF at 25°C (hours) 2,171,669

    Sản phẩm cùng hãng

    Hotline Báo giá nhanh Gmail Zalo
    Hotline Báo giá nhanh Gmail Zalo
    TOP
