    SWITCH CISCO

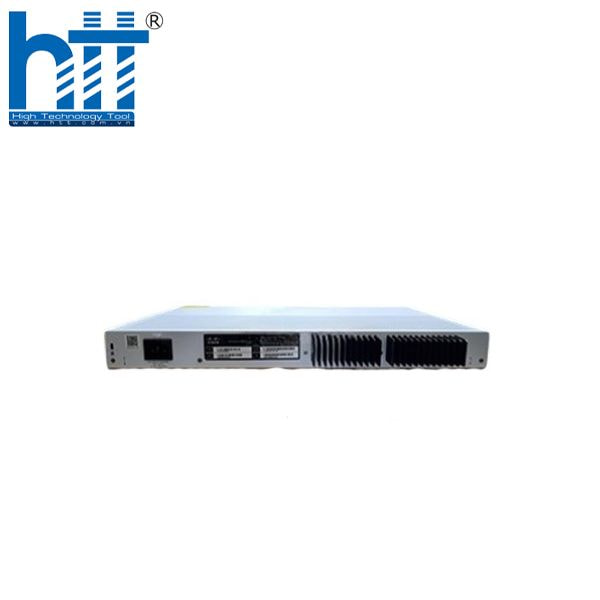

    Switch Cisco Catalyst C1200-24P-4X 24x GE PoE+, 4x 10G SFP+
    Giá bán: Liên hệ
    • Mã sản phẩm: MT-C1200-24P-4X
    • Tình trạng: Còn hàng
    • Giá trên đã bao gồm VAT, Giao hàng, lắp đặt, hướng dẫn và bảo hành tận nơi sử dụng
    • Bảo hành: 12 Tháng

      - Switch Access Cisco C1200-24P-4X 28-Ports GE

      - Cổng Lan: 24x 10/100/1000 PoE+ ports with 195W power budget

      - Cổng Uplink: 4x 10 Gigabit SFP+

      - Kiểu Switch: Switch Access Layer 2, Rack-mount, Fanless

      - Tốc độ chuyển mạch: 128 Gbps

      - Tốc độ truyền gói tin: 95.23 mpps

      - Quản trị: CLI, SSH, Telnet, WebUI, App mobile

    Switch Cisco Catalyst C1200-24P-4X 24x GE PoE+, 4x 10G SFP+

    Bạn đang tìm một giải pháp mạng linh hoạt, đáng tin cậy và có khả năng cấp nguồn PoE cho thiết bị đầu cuối?Bạn muốn tối ưu chi phí hạ tầng mà vẫn đảm bảo hiệu suất mạng và khả năng mở rộng trong tương lai? Cisco Catalyst C1200-24P-4X chính là thiết bị chuyển mạch lý tưởng dành cho doanh nghiệp SMB, văn phòng, trung tâm giáo dục và hệ thống cửa hàng bán lẻ. Cùng Hợp Thành Thịnh khám phá chi tiết về dòng switch thế hệ mới này.



    1. Tổng quan về Switch Cisco Catalyst C1200-24P-4X

    Cisco C1200-24P-4X là mẫu switch thuộc dòng Catalyst 1200 Series thế hệ mới, thiết kế dạng rack-mount, hỗ trợ cấp nguồn PoE+ cùng các tính năng Layer 2 và định tuyến tĩnh Layer 3 cơ bản.

    Thông số chính:

    - 24 cổng GE (10/100/1000) RJ45 hỗ trợ PoE+, tổng công suất 195W

    - 4 cổng uplink quang SFP+ tốc độ 10Gbps

    - Thiết kế nhỏ gọn – không quạt – vận hành êm ái

    - Tích hợp tính năng quản trị thông minh, dễ sử dụng

    Sản phẩm phù hợp với những mô hình triển khai cần vừa truyền dữ liệu tốc độ cao, vừa cấp nguồn cho thiết bị đầu cuối như IP Phone, Camera, Wi-Fi AP mà không cần lắp đặt nguồn phụ.



    2. Khả năng cấp nguồn PoE+ – Tối ưu triển khai thiết bị đầu cuối

    Cisco C1200-24P-4X hỗ trợ Power over Ethernet Plus (PoE+) trên tất cả 24 cổng mạng RJ45, với tổng công suất lên tới 195W.

    Cấp nguồn tối đa 30W mỗi cổng, đủ cho hầu hết thiết bị như:

    - Điện thoại IP

    - Camera IP giám sát

    - Thiết bị Wi-Fi chuyên dụng

    - Bộ định tuyến mini, thiết bị IoT

    Tính năng này giúp giảm chi phí triển khai nhờ loại bỏ nhu cầu kéo dây điện rườm rà hoặc lắp adapter riêng lẻ.



    3. Hiệu suất mạnh mẽ – Đáp ứng nhu cầu doanh nghiệp vừa và nhỏ

    C1200-24P-4X mang đến tốc độ truyền tải ổn định, giúp cải thiện đáng kể:

    - Tốc độ chia sẻ tệp nội bộ

    - Khả năng truy cập máy chủ nhanh hơn

    - Truyền dữ liệu cho camera giám sát không gián đoạn

    - Hiệu suất các ứng dụng cloud, VoIP, CRM…

    Ngoài ra, 4 cổng uplink 10G SFP+ cho phép mở rộng kết nối lên Core Switch hoặc các phòng ban khác trong hệ thống, đảm bảo độ trễ thấp và đường truyền rộng mở cho tương lai.



    4. Dễ dàng quản lý và giám sát thiết bị

    Switch Cisco C1200-24P-4X hỗ trợ nhiều phương thức quản lý hiện đại và linh hoạt:

    - Cisco Business Dashboard – Giao diện quản trị tập trung, trực quan

    - Giao diện web GUI đơn giản, thân thiện

    - Cấu hình qua dòng lệnh (CLI) với cổng console RJ45 hoặc USB Type-C

    - Hỗ trợ Telnet và SSH – Quản lý từ xa an toàn

    Giải pháp Plug and Play tích hợp giúp bạn dễ dàng triển khai switch mới chỉ trong vài phút.



    5. Bảo mật mạnh mẽ – An toàn tuyệt đối cho dữ liệu doanh nghiệp

    Cisco luôn đặt an ninh mạng lên hàng đầu. Switch C1200-24P-4X tích hợp nhiều công nghệ bảo mật cao cấp giúp ngăn chặn xâm nhập trái phép:

    - IEEE 802.1X – Kiểm soát truy cập theo người dùng/thiết bị

    - Access Control Lists (ACLs) – Giới hạn quyền truy cập từng phân đoạn mạng

    - Chống tấn công DoS – Giảm rủi ro gián đoạn mạng

    - Giao thức xác thực IP và lọc gói thông minh

    Với hệ thống bảo mật tích hợp, bạn hoàn toàn yên tâm vận hành hệ thống 24/7.



    6. Hỗ trợ định tuyến Layer 3 cơ bản

    Cisco C1200-24P-4X hỗ trợ định tuyến tĩnh Layer 3, giúp:

    - Quản lý VLAN linh hoạt

    - Giao tiếp giữa các phân đoạn mạng hiệu quả

    - Tối ưu hóa luồng dữ liệu nội bộ

    - Giảm tải cho Router chính

    Giải pháp phù hợp cho môi trường cần phân tách mạng giữa các bộ phận hoặc phòng ban độc lập.



    7. Thiết kế linh hoạt – Hoạt động êm ái, dễ dàng triển khai

    Dù là dạng rack-mount, C1200-24P-4X vẫn có thiết kế nhỏ gọn, không quạt, phù hợp lắp đặt tại:

    - Tủ mạng tiêu chuẩn

    - Trên bàn làm việc

    - Gắn tường hoặc góc khuất không gian mở

    Vận hành yên tĩnh, không gây ảnh hưởng đến môi trường làm việc, học tập hay bán hàng.



    8. Ứng dụng thực tế của Switch C1200-24P-4X

    Thiết bị đặc biệt phù hợp với các mô hình như:

    - Văn phòng SMB có khoảng 20–50 nhân viên

    - Chi nhánh công ty cần mở rộng mạng

    - Trường học – phòng lab – lớp học thông minh

    - Showroom, hệ thống camera IP, cửa hàng lớn

    - Quán café, nhà hàng có hệ thống Wi-Fi toàn khu

    Liên Hệ Ngay Để Được Tư Vấn & Đặt Hàng

    Đi cùng với đó công ty Hợp Thành Thịnh còn cung cấp thêm các hãng như: Juniper Networks, HPE Aruba, TP-Link,...Không chỉ cung cấp sản phẩm, chúng tôi còn có dịch vụ sửa chữa chuyên nghiệp sau bảo hành cho các thiết bị như: Màn hình, thiết bị mạng, máy in, máy tính, máy chiếu, ups,... Đồng hành và hỗ trợ tận tâm cho các anh em kỹ thuật, IT, và các cửa hàng tin học.

    Thông số kỹ thuật

    Performance
    Switching capacity 128.0 Gbps
    Forwarding rate 95.23 Mbps
    Power over Ethernet (PoE)
    Power dedicated to PoE 195W
    Number of ports that support PoE 24
    Layer 2 switching
    Spanning Tree Protocol (STP) Standard 802.1d spanning tree support
    Fast convergence using 802.1w (Rapid Spanning Tree Protocol [RSTP]), enabled by default Multiple spanning tree instances using 802.1s (MSTP); 8 instances are supported
    Per-VLAN Spanning Tree Plus (PVST+); 126 instances are supported
    Rapid PVST+ (RPVST+); 126 instances are supported
    Port grouping/link aggregation Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)
    Up to 4 groups
    Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad Link Aggregation Group (LAG)
    VLAN Support for up to 255 active VLANs simultaneously Port-based and 802.1Q tag-based VLANs Management VLAN
    Guest VLAN
    Auto Surveillance VLAN (ASV)
    Voice VLAN Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Voice Services Discovery Protocol (VSDP) delivers networkwide zero-touch deployment of voice endpoints and call control devices
    Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP) Enable automatically propagation and configuration of VLANs in a bridged domain
    Internet Group Management Protocol (IGMP) versions 1, 2, and 3 snooping Limits bandwidth-intensive multicast traffic to only the requesters; supports 255 multicast groups (source-specific multicasting is also supported)
    IGMP querier Used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
    Head-of-Line (HOL) blocking HOL blocking prevention
    Loopback detection Provides protection against loops by transmitting loop protocol packets out of ports on which loop protection has been enabled. It operates independently of STP
    Layer 3 routing
    IPv4 routing Wire-speed routing of IPv4 packets
    Up to 32 static routes and up to 16 IP interfaces
    IPv6 routing Wire-speed routing of IPv6 packets
    Layer 3 interface Configuration of Layer 3 interface on physical port, LAG, VLAN interface, or loopback interface
    Classless Interdomain Routing (CIDR) Support for CIDR
    Dynamic Host Configuration Protocol (DHCP) relay at Layer 3 Relay of DHCP traffic across IP domains
    User Datagram Protocol (UDP) relay Relay of broadcast information across Layer 3 domains for application discovery or relaying of Bootstrap Protocol (BootP)/DHCP packets
    Security
    Secure Sockets Layer (SSL) Encrypts all HTTPS traffic, allowing secure access to the browser-based management GUI in the switch
    SSH Protocol SSH is a secure replacement for Telnet traffic. Secure Copy (SCP) also uses SSH. SSH v1 and v2 are supported.
    IEEE 802.1X (authenticator role) RADIUS authentication, guest VLAN, single/multiple host mode, and single/multiple sessions
    STP loopback guard Provides additional protection against Layer 2 forwarding loops (STP loops)
    Secure Core Technology (SCT) Ensures that the switch will receive and process management and protocol traffic no matter how much traffic is received
    Secure Sensitive Data (SSD) A mechanism to manage sensitive data (such as passwords, keys, and so on) securely on the switch, populating this data to other devices and a secure auto-configuration. Access to view the sensitive data as plain text or encrypted is provided according to the user- configured access level and the access method of the user
    Trustworthy systems Trustworthy systems provide a highly secure foundation for Cisco products
    Run-time defenses (Executable Space Protection [X-Space], Address Space Layout Randomization [ASLR], Built-In Object Size Checking [BOSC])
    Port security Ability to lock source MAC addresses to ports and limit the number of learned MAC addresses
    RADIUS Supports RADIUS authentication for management access. Switch functions as a client
    Storm control Broadcast, multicast, and unknown unicast
    DoS prevention DoS attack prevention
    Multiple user privilege levels in CLI Level 1, 7, and 15 privilege levels
    ACLs Support for up to 512 rules
    Drop or rate limit based on source and destination MAC, VLAN ID, IPv4 or IPv6 address, IPv6 flow label, protocol, port, Differentiated Services Code Point (DSCP)/IP precedence, TCP/UDP source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, IGMP packets, TCP flag; ACL can be applied on both ingress and egress sides
    Time-based ACLs supported
    Quality of service
    Priority levels 8 hardware queues
    Scheduling Strict priority and Weighted Round-Robin (WRR) queue assignment based on DSCP and Class of Service (802.1p/CoS)
    Class of service Port based, 802.1p VLAN priority based, IPv4/v6 IP precedence/Type of Service (ToS)/DSCP based, Differentiated Services (DiffServ), classification and re-marking ACLs, trusted QoS
    Rate limiting Ingress policer, egress shaping and rate control per VLAN, per port, and flow based
    Congestion avoidance A TCP congestion avoidance algorithm is required to reduce and prevent global TCP loss synchronization
    IPv6
    IPv6 IPv6 host mode IPv6 over Ethernet Dual IPv6/IPv4 stack
    IPv6 Neighbor Discovery (ND)
    IPv6 stateless address auto-configuration
    Path Maximum Transmission Unit (MTU) discovery Duplicate Address Detection (DAD)
    ICMP version 6
    IPv6 over IPv4 network with Intrasite Automatic Tunnel Addressing Protocol (ISATAP) support
    USGv6 and IPv6 Gold Logo certified
    IPv6 QoS Prioritizes IPv6 packets in hardware
    IPv6 ACL Drop or rate-limit IPv6 packets in hardware
    Multicast Listener Discovery (MLD v1/2) snooping Delivers IPv6 multicast packets only to the required receivers
    IPv6 applications Web/SSL, Telnet server/SSH, Ping, Traceroute, Simple Network Time Protocol (SNTP), Trivial File Transfer Protocol (TFTP), Simple Network Management Protocol (SNMP), RADIUS, Syslog, DNS client, DHCP client, DHCP auto-configuration
    Management
    Cisco Business Dashboard Support for embedded probe for Cisco Business Dashboard running on the switch. Eliminates the need to set up a separate hardware or virtual machine for the Cisco Business Dashboard probe onsite
    Cisco Business mobile app Mobile app for Cisco Business switch and wireless products. Helps to set up a local network in minutes and provide easy management at your fingertips.
    Cisco Network Plug and Play (PnP) agent The Cisco Network PnP solution provides a simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or for provisioning updates to an existing network. The solution provides a unified approach to provision Cisco routers, switches, and wireless devices with a near-zero-touch deployment experience.
    Supports Cisco PnP Connect
    Web user interface Built-in switch configuration utility for easy browser-based device configuration (HTTP/HTTPS). Supports configuration, wizards, system dashboard, system maintenance, and monitoring
    Basic and advanced mode for maximum operational efficiency
    SNMP SNMP versions 1, 2c, and 3 with support for traps, and SNMP v3 User-Based Security Model (USM)
