    Switch Cisco Catalyst C1200-48P-4X 48x GE PoE+, 4x 10G SFP+
    Giá bán: Liên hệ
    • Mã sản phẩm: MT-C1200-48P-4X
    • Tình trạng: Còn hàng
    • Giá trên đã bao gồm VAT, Giao hàng, lắp đặt, hướng dẫn và bảo hành tận nơi sử dụng
    • Bảo hành:

      Thiết bị chuyển mạch Cisco C1200-48P-4X Catalyst 1200 Series Switches gồm 48 cổng 10/100/1000 hỗ trợ PoE+ với tổng công suất 375W, 4 cổng uplink 10G SFP+. Là bộ chuyển mạch hoàn hảo để tăng cường hiệu suất mạng cho doanh nghiệp, được quản lý thông minh thông qua ứng dụng di động hoặc bảng điều khiển của Cisco Business.

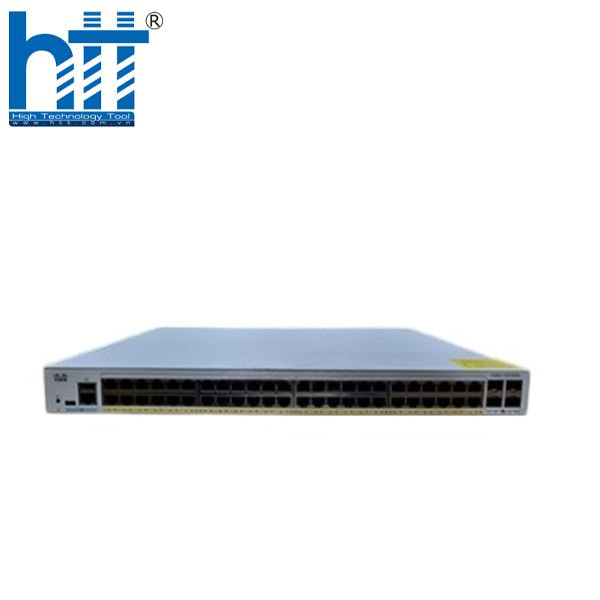

    Switch Cisco Catalyst C1200-48P-4X 48x GE PoE+, 4x 10G SFP+

    Bạn đang tìm một thiết bị chuyển mạch có hiệu suất cao, hỗ trợ PoE+ mạnh mẽ để đáp ứng các nhu cầu kết nối từ camera, điện thoại IP cho đến hệ thống mạng không dây? Hãy cùng Hợp Thành Thịnh khám phá ngay Switch Cisco Catalyst C1200-48P-4X – bộ chuyển mạch lý tưởng cho doanh nghiệp vừa và nhỏ, hội tụ đầy đủ hiệu năng, quản lý dễ dàng và chi phí tối ưu.



    1. Tổng quan về Cisco C1200-48P-4X

    Cisco C1200-48P-4X thuộc dòng sản phẩm Catalyst 1200 Series, được thiết kế để phục vụ các doanh nghiệp cần giải pháp mạng đáng tin cậy, bền bỉ và linh hoạt trong quản trị. Thiết bị sở hữu:

    - Tổng cộng 52 cổng mạng gồm:

    + 48 cổng RJ45 10/100/1000 Mbps hỗ trợ PoE+

    + 4 cổng uplink quang SFP+ tốc độ 10Gbps

    - Tổng công suất cấp nguồn PoE lên tới 375W, đủ để triển khai đồng thời nhiều camera IP, điện thoại VoIP và thiết bị không dây.

    - Tốc độ chuyển mạch đạt 176 Gbps, tốc độ xử lý gói tin 130.94 Mpps – đảm bảo đường truyền mạnh mẽ và liên tục trong hệ thống mạng nhiều thiết bị.

    - Quản trị linh hoạt qua WebUI, dòng lệnh CLI, SSH, Telnet, Mobile App và Cloud – phù hợp với mọi trình độ quản trị hệ thống.



    2. Những tính năng nổi bật của Cisco C1200-48P-4X

    2.1. Quản lý và cấu hình dễ dàng

    C1200-48P-4X có thể được quản lý qua:

    - Giao diện Web trực quan

    - Ứng dụng Cisco Business Dashboard

    - App Mobile Cisco

    - CLI (Command Line Interface) dành cho các chuyên gia mạng

    Giao diện thân thiện giúp việc giám sát, cấu hình và triển khai mạng trở nên đơn giản và nhanh chóng hơn bao giờ hết, kể cả khi mở rộng hệ thống.

    2.2. Hiệu suất cao và độ tin cậy vượt trội

    Thiết bị cung cấp:

    - Hiệu suất mạng ổn định và nhanh chóng, đảm bảo độ trễ thấp cho các ứng dụng thời gian thực

    - Hỗ trợ uplink 10G SFP+ giúp doanh nghiệp sẵn sàng nâng cấp và mở rộng hạ tầng mà không phải thay đổi phần cứng

    2.3. Cấp nguồn PoE+ mạnh mẽ

    Với tổng công suất PoE 375W, Switch có thể cấp nguồn trực tiếp cho:

    - Camera IP

    - Điện thoại VoIP

    - Bộ phát wifi

    - Hệ thống liên lạc nội bộ

    PoE+ hỗ trợ lên tới 30W mỗi cổng, giúp tiết kiệm dây nguồn, công lắp đặt và giảm chi phí đầu tư hạ tầng.

    2.4. Routing Layer 3 thông minh

    Switch hỗ trợ định tuyến tĩnh Layer 3, giúp:

    - Phân tách hệ thống mạng thành các VLAN độc lập

    - Quản lý linh hoạt theo phòng ban, nhóm làm việc

    - Tăng tính bảo mật nội bộ mà không làm giảm hiệu suất hệ thống

    2.5. Thiết kế phù hợp với mọi môi trường

    - Dạng rack-mount 1U, dễ dàng lắp đặt vào tủ mạng chuẩn

    - Tích hợp 1 quạt tản nhiệt đảm bảo hoạt động ổn định liên tục

    - Tiết kiệm năng lượng, thân thiện môi trường nhờ các chế độ vận hành thông minh



    3. Cisco C1200-48P-4X phù hợp cho môi trường mạng nào?

    3.1. Văn phòng doanh nghiệp vừa và lớn

    Kết nối hàng chục máy tính, máy in, điện thoại nội bộ IP, camera giám sát qua một thiết bị duy nhất, giúp tiết kiệm không gian và dễ dàng quản lý.

    3.2. Hệ thống giám sát và an ninh

    Với khả năng cấp nguồn PoE+ cho 48 cổng, thiết bị cực kỳ phù hợp để triển khai các hệ thống camera IP và thiết bị bảo vệ trong tòa nhà, nhà xưởng.

    3.3. Trường học, bệnh viện, khách sạn

    Tối ưu chi phí đầu tư hạ tầng mà vẫn đảm bảo hiệu suất cao cho các dịch vụ cần độ trễ thấp như hội nghị trực tuyến, IP phone, wifi công cộng.

    Liên Hệ Ngay Để Được Tư Vấn & Đặt Hàng

    Đi cùng với đó công ty Hợp Thành Thịnh còn cung cấp thêm các hãng như: Juniper Networks, HPE Aruba, TP-Link,...Không chỉ cung cấp sản phẩm, chúng tôi còn có dịch vụ sửa chữa chuyên nghiệp sau bảo hành cho các thiết bị như: Màn hình, thiết bị mạng, máy in, máy tính, máy chiếu, ups,... Đồng hành và hỗ trợ tận tâm cho các anh em kỹ thuật, IT, và các cửa hàng tin học.

    Thông số kỹ thuât

    Performance
    Switching capacity 176.0 Gbps
    Forwarding rate 130.94 Mbps
    Power over Ethernet (PoE)
    Power dedicated to PoE 375W
    Number of ports that support PoE 48
    Layer 2 switching
    Spanning Tree Protocol (STP) Standard 802.1d spanning tree support
    Fast convergence using 802.1w (Rapid Spanning Tree Protocol [RSTP]), enabled by default Multiple spanning tree instances using 802.1s (MSTP); 8 instances are supported
    Per-VLAN Spanning Tree Plus (PVST+); 126 instances are supported
    Rapid PVST+ (RPVST+); 126 instances are supported
    Port grouping/link aggregation Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)
    Up to 4 groups
    Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad Link Aggregation Group (LAG)
    VLAN Support for up to 255 active VLANs simultaneously Port-based and 802.1Q tag-based VLANs Management VLAN
    Guest VLAN
    Auto Surveillance VLAN (ASV)
    Voice VLAN Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Voice Services Discovery Protocol (VSDP) delivers networkwide zero-touch deployment of voice endpoints and call control devices
    Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP) Enable automatically propagation and configuration of VLANs in a bridged domain
    Internet Group Management Protocol (IGMP) versions 1, 2, and 3 snooping Limits bandwidth-intensive multicast traffic to only the requesters; supports 255 multicast groups (source-specific multicasting is also supported)
    IGMP querier Used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
    Head-of-Line (HOL) blocking HOL blocking prevention
    Loopback detection Provides protection against loops by transmitting loop protocol packets out of ports on which loop protection has been enabled. It operates independently of STP
    Layer 3 routing
    IPv4 routing Wire-speed routing of IPv4 packets
    Up to 32 static routes and up to 16 IP interfaces
    IPv6 routing Wire-speed routing of IPv6 packets
    Layer 3 interface Configuration of Layer 3 interface on physical port, LAG, VLAN interface, or loopback interface
    Classless Interdomain Routing (CIDR) Support for CIDR
    Dynamic Host Configuration Protocol (DHCP) relay at Layer 3 Relay of DHCP traffic across IP domains
    User Datagram Protocol (UDP) relay Relay of broadcast information across Layer 3 domains for application discovery or relaying of Bootstrap Protocol (BootP)/DHCP packets
    Security
    Secure Sockets Layer (SSL) Encrypts all HTTPS traffic, allowing secure access to the browser-based management GUI in the switch
    SSH Protocol SSH is a secure replacement for Telnet traffic. Secure Copy (SCP) also uses SSH. SSH v1 and v2 are supported.
    IEEE 802.1X (authenticator role) RADIUS authentication, guest VLAN, single/multiple host mode, and single/multiple sessions
    STP loopback guard Provides additional protection against Layer 2 forwarding loops (STP loops)
    Secure Core Technology (SCT) Ensures that the switch will receive and process management and protocol traffic no matter how much traffic is received
    Secure Sensitive Data (SSD) A mechanism to manage sensitive data (such as passwords, keys, and so on) securely on the switch, populating this data to other devices and a secure auto-configuration. Access to view the sensitive data as plain text or encrypted is provided according to the user- configured access level and the access method of the user
    Trustworthy systems Trustworthy systems provide a highly secure foundation for Cisco products
    Run-time defenses (Executable Space Protection [X-Space], Address Space Layout Randomization [ASLR], Built-In Object Size Checking [BOSC])
    Port security Ability to lock source MAC addresses to ports and limit the number of learned MAC addresses
    RADIUS Supports RADIUS authentication for management access. Switch functions as a client
    Storm control Broadcast, multicast, and unknown unicast
    DoS prevention DoS attack prevention
    Multiple user privilege levels in CLI Level 1, 7, and 15 privilege levels
    ACLs Support for up to 512 rules
    Drop or rate limit based on source and destination MAC, VLAN ID, IPv4 or IPv6 address, IPv6 flow label, protocol, port, Differentiated Services Code Point (DSCP)/IP precedence, TCP/UDP source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, IGMP packets, TCP flag; ACL can be applied on both ingress and egress sides
    Time-based ACLs supported
    Quality of service
    Priority levels 8 hardware queues
    Scheduling Strict priority and Weighted Round-Robin (WRR) queue assignment based on DSCP and Class of Service (802.1p/CoS)
    Class of service Port based, 802.1p VLAN priority based, IPv4/v6 IP precedence/Type of Service (ToS)/DSCP based, Differentiated Services (DiffServ), classification and re-marking ACLs, trusted QoS
    Rate limiting Ingress policer, egress shaping and rate control per VLAN, per port, and flow based
    Congestion avoidance A TCP congestion avoidance algorithm is required to reduce and prevent global TCP loss synchronization
    IPv6
    IPv6 IPv6 host mode IPv6 over Ethernet Dual IPv6/IPv4 stack
    IPv6 Neighbor Discovery (ND)
    IPv6 stateless address auto-configuration
    Path Maximum Transmission Unit (MTU) discovery Duplicate Address Detection (DAD)
    ICMP version 6
    IPv6 over IPv4 network with Intrasite Automatic Tunnel Addressing Protocol (ISATAP) support
    USGv6 and IPv6 Gold Logo certified
    IPv6 QoS Prioritizes IPv6 packets in hardware
    IPv6 ACL Drop or rate-limit IPv6 packets in hardware
    Multicast Listener Discovery (MLD v1/2) snooping Delivers IPv6 multicast packets only to the required receivers
    IPv6 applications Web/SSL, Telnet server/SSH, Ping, Traceroute, Simple Network Time Protocol (SNTP), Trivial File Transfer Protocol (TFTP), Simple Network Management Protocol (SNMP), RADIUS, Syslog, DNS client, DHCP client, DHCP auto-configuration
    Management
    Cisco Business Dashboard Support for embedded probe for Cisco Business Dashboard running on the switch. Eliminates the need to set up a separate hardware or virtual machine for the Cisco Business Dashboard probe onsite
    Cisco Business mobile app Mobile app for Cisco Business switch and wireless products. Helps to set up a local network in minutes and provide easy management at your fingertips.
    Cisco Network Plug and Play (PnP) agent The Cisco Network PnP solution provides a simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or for provisioning updates to an existing network. The solution provides a unified approach to provision Cisco routers, switches, and wireless devices with a near-zero-touch deployment experience.
    Supports Cisco PnP Connect
    Web user interface Built-in switch configuration utility for easy browser-based device configuration (HTTP/HTTPS). Supports configuration, wizards, system dashboard, system maintenance, and monitoring
    Basic and advanced mode for maximum operational efficiency
    SNMP SNMP versions 1, 2c, and 3 with support for traps, and SNMP v3 User-Based Security Model (USM)
