    SWITCH CISCO

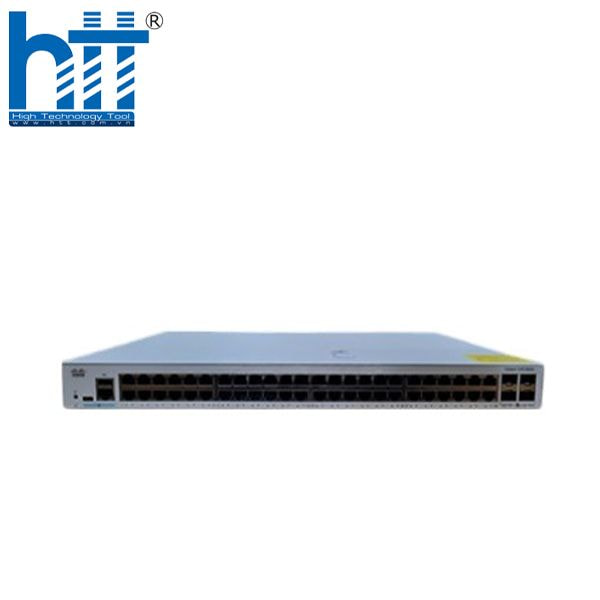

    Switch Cisco Catalyst C1200-48T-4X 48x 10/100/1000 ports, 4x 10G SFP+
    Giá bán: Liên hệ
    • Mã sản phẩm: MT-C1200-48T-4X
    • Tình trạng: Còn hàng
    • Giá trên đã bao gồm VAT, Giao hàng, lắp đặt, hướng dẫn và bảo hành tận nơi sử dụng
    • Bảo hành:

      - Switch Access Cisco C1200-48T-4X 52-Ports GE

      - Cổng RJ-45: 48x 10/100/1000 ports

      - Cổng SFP: 4x 10 Gigabit SFP+

      - Switch Type: Switch Access Managed, Rack-mount

      - Tốc độ chuyển mạch: 176 Gbps

      - Tốc độ truyền gói tin: 130.94 mpps

      - Quản trị: CLI, SSH, Telnet, WebUI, App mobile

    Switch Cisco Catalyst C1200-48T-4X 48x 10/100/1000 ports, 4x 10G SFP+

    Bạn đang tìm kiếm một thiết bị chuyển mạch có khả năng kết nối lên đến 48 thiết bị, tích hợp tính năng quản lý thông minh và hỗ trợ uplink tốc độ cao? Bạn cần một giải pháp đáng tin cậy cho các hệ thống mạng văn phòng, doanh nghiệp vừa và lớn, mà vẫn đảm bảo hiệu năng, bảo mật và tiết kiệm chi phí? Hãy cùng Hợp Thành Thịnh tìm hiểu về Cisco C1200-48T-4X – thiết bị chuyển mạch thế hệ mới thuộc dòng Catalyst 1200 Series đến từ thương hiệu hàng đầu thế giới Cisco.



    1. Giới thiệu tổng quan về Switch Cisco C1200-48T-4X

    Cisco Catalyst C1200-48T-4X là thiết bị chuyển mạch dạng rack-mount, được thiết kế với 48 cổng Ethernet 10/100/1000 Mbps cùng 4 cổng uplink 10G SFP+, mang lại khả năng mở rộng linh hoạt và hiệu suất kết nối mạnh mẽ cho các hệ thống mạng hiện đại.

    Thiết bị phù hợp triển khai trong các doanh nghiệp quy mô vừa và lớn, trường học, tổ chức hành chính hoặc hệ thống giám sát camera IP – nơi yêu cầu mật độ kết nối lớn, ổn định và an toàn.



    2. Các đặc điểm nổi bật của Switch C1200-48T-4X

    2.1. Kết nối mạnh mẽ và mở rộng linh hoạt

    - 48 cổng LAN Gigabit Ethernet, tốc độ 10/100/1000 Mbps.

    - 4 cổng uplink 10G SFP+ cho phép truyền tải dữ liệu tốc độ cao giữa các thiết bị mạng cốt lõi hoặc kết nối liên tầng (backbone).

    2.2. Hiệu năng mạnh, xử lý đáng tin cậy

    - Cung cấp băng thông chuyển mạch và xử lý lưu lượng ổn định, phù hợp cho môi trường có số lượng lớn thiết bị truy cập cùng lúc.

    - Hỗ trợ chuyển mạch Layer 2 cơ bản và Layer 3 định tuyến tĩnh, đáp ứng nhu cầu phân đoạn mạng mà không làm giảm hiệu suất hoạt động.

    2.3. Hỗ trợ quản lý toàn diện, đơn giản hóa vận hành

    - Thiết bị được quản trị thông qua Cisco Business Dashboard, Web UI, App mobile, hoặc CLI (giao diện dòng lệnh) qua cổng console RJ45/USB-C.

    - Giúp các quản trị viên dễ dàng kiểm soát, giám sát và cấu hình hệ thống mạng dù ở bất kỳ đâu.

    2.4. Tính năng bảo mật cao

    Bảo vệ mạng trước các nguy cơ tấn công nhờ:

    - IEEE 802.1X – kiểm soát truy cập tại cổng.

    - ACLs (Access Control Lists) – kiểm soát lưu lượng ra/vào từng phân vùng mạng.

    - Ngăn chặn tấn công DoS (từ chối dịch vụ) và bảo vệ các tài nguyên quan trọng nội bộ.

    2.5. Thiết kế tối ưu cho doanh nghiệp

    - Dạng rack 1U tiêu chuẩn, dễ dàng lắp đặt trong tủ mạng.

    - Thiết kế không quạt, hoạt động yên tĩnh – lý tưởng cho các văn phòng, trung tâm dữ liệu nhỏ nơi tiếng ồn cần được hạn chế.

    - Cấu trúc phần cứng tiên tiến giúp tiết kiệm điện năng và tăng tuổi thọ thiết bị.



    3. Tính năng và lợi ích chính của Cisco C1200-48T-4X

    3.1. Quản lý đơn giản với trải nghiệm người dùng tối ưu

    - Giao diện điều khiển hiện đại, dễ sử dụng, hỗ trợ trực quan cho người mới bắt đầu hoặc quản trị viên chuyên nghiệp.

    - Dễ dàng tích hợp với ứng dụng Cloud của Cisco để giám sát mạng từ xa, nâng cao hiệu quả vận hành.

    3.2. Tối ưu hạ tầng với Routing Layer 3

    - Cho phép phân chia mạng bằng các VLAN độc lập.

    - Hỗ trợ định tuyến nội bộ giữa các VLAN ngay trên switch, giảm tải cho router trung tâm, giúp tối ưu hóa băng thông và cải thiện hiệu suất toàn mạng.

    3.3. Ưu tiên dịch vụ quan trọng với QoS

    Chất lượng dịch vụ (QoS) giúp định hình lưu lượng, ưu tiên băng thông cho các ứng dụng cần độ trễ thấp như video call, VoIP, hội nghị trực tuyến…

    3.4. Giải pháp mạng hội tụ

    - Cho phép kết nối đồng thời nhiều loại thiết bị khác nhau: camera giám sát, điện thoại IP, máy tính, máy in, thiết bị lưu trữ…

    - Tối ưu hóa mạng doanh nghiệp trong một kiến trúc thống nhất, dễ mở rộng và dễ quản lý.

    3.5. Bảo vệ môi trường và tiết kiệm năng lượng

    - Hỗ trợ Energy Efficient Ethernet (EEE - IEEE 802.3az) giúp tự động điều chỉnh năng lượng tiêu thụ theo trạng thái hoạt động của thiết bị.

    - Tự động tắt nguồn các cổng không sử dụng, giảm điện năng tiêu thụ và kéo dài tuổi thọ thiết bị.



    4. Ứng dụng thực tế của Switch Cisco C1200-48T-4X

    - Doanh nghiệp vừa và lớn: kết nối hơn 48 thiết bị đầu cuối như máy tính, máy in, điện thoại VoIP, hệ thống giám sát IP…

    - Tổ chức giáo dục, bệnh viện: hỗ trợ học tập, hội nghị trực tuyến, lưu trữ dữ liệu.

    - Trung tâm dữ liệu, hệ thống văn phòng phân tán: dễ dàng mở rộng, linh hoạt, tiết kiệm chi phí quản lý và vận hành.



    Liên Hệ Ngay Để Được Tư Vấn & Đặt Hàng

    Đi cùng với đó công ty Hợp Thành Thịnh còn cung cấp thêm các hãng như: Juniper Networks, HPE Aruba, TP-Link,...Không chỉ cung cấp sản phẩm, chúng tôi còn có dịch vụ sửa chữa chuyên nghiệp sau bảo hành cho các thiết bị như: Màn hình, thiết bị mạng, máy in, máy tính, máy chiếu, ups,... Đồng hành và hỗ trợ tận tâm cho các anh em kỹ thuật, IT, và các cửa hàng tin học.

    Thông số kỹ thuật

    Datasheet C1300-48T-4X-EU
    Model C1300-48T-4X
    Performance
    Switching capacity 176.0 Gbps
    Forwarding rate 130.94 Mbps
    Layer 2 switching
    Spanning Tree Protocol (STP) Standard 802.1d spanning tree support
    Fast convergence using 802.1w (Rapid Spanning Tree Protocol [RSTP]), enabled by default Multiple spanning tree instances using 802.1s (MSTP); 8 instances are supported
    Per-VLAN Spanning Tree Plus (PVST+); 126 instances are supported
    Rapid PVST+ (RPVST+); 126 instances are supported
    Port grouping/link aggregation Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)
    Up to 4 groups
    Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad Link Aggregation Group (LAG)
    VLAN Support for up to 255 active VLANs simultaneously Port-based and 802.1Q tag-based VLANs Management VLAN
    Guest VLAN
    Auto Surveillance VLAN (ASV)
    Voice VLAN Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Voice Services Discovery Protocol (VSDP) delivers networkwide zero-touch deployment of voice endpoints and call control devices
    Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP) Enable automatically propagation and configuration of VLANs in a bridged domain
    Internet Group Management Protocol (IGMP) versions 1, 2, and 3 snooping Limits bandwidth-intensive multicast traffic to only the requesters; supports 255 multicast groups (source-specific multicasting is also supported)
    IGMP querier Used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
    Head-of-Line (HOL) blocking HOL blocking prevention
    Loopback detection Provides protection against loops by transmitting loop protocol packets out of ports on which loop protection has been enabled. It operates independently of STP
    Layer 3 routing
    IPv4 routing Wire-speed routing of IPv4 packets
    Up to 32 static routes and up to 16 IP interfaces
    IPv6 routing Wire-speed routing of IPv6 packets
    Layer 3 interface Configuration of Layer 3 interface on physical port, LAG, VLAN interface, or loopback interface
    Classless Interdomain Routing (CIDR) Support for CIDR
    Dynamic Host Configuration Protocol (DHCP) relay at Layer 3 Relay of DHCP traffic across IP domains
    User Datagram Protocol (UDP) relay Relay of broadcast information across Layer 3 domains for application discovery or relaying of Bootstrap Protocol (BootP)/DHCP packets
    Security
    Secure Sockets Layer (SSL) Encrypts all HTTPS traffic, allowing secure access to the browser-based management GUI in the switch
    SSH Protocol SSH is a secure replacement for Telnet traffic. Secure Copy (SCP) also uses SSH. SSH v1 and v2 are supported.
    IEEE 802.1X (authenticator role) RADIUS authentication, guest VLAN, single/multiple host mode, and single/multiple sessions
    STP loopback guard Provides additional protection against Layer 2 forwarding loops (STP loops)
    Secure Core Technology (SCT) Ensures that the switch will receive and process management and protocol traffic no matter how much traffic is received
    Secure Sensitive Data (SSD) A mechanism to manage sensitive data (such as passwords, keys, and so on) securely on the switch, populating this data to other devices and a secure auto-configuration. Access to view the sensitive data as plain text or encrypted is provided according to the user- configured access level and the access method of the user
    Trustworthy systems Trustworthy systems provide a highly secure foundation for Cisco products
    Run-time defenses (Executable Space Protection [X-Space], Address Space Layout Randomization [ASLR], Built-In Object Size Checking [BOSC])
    Port security Ability to lock source MAC addresses to ports and limit the number of learned MAC addresses
    RADIUS Supports RADIUS authentication for management access. Switch functions as a client
    Storm control Broadcast, multicast, and unknown unicast
    DoS prevention DoS attack prevention
    Multiple user privilege levels in CLI Level 1, 7, and 15 privilege levels
    ACLs Support for up to 512 rules
    Drop or rate limit based on source and destination MAC, VLAN ID, IPv4 or IPv6 address, IPv6 flow label, protocol, port, Differentiated Services Code Point (DSCP)/IP precedence, TCP/UDP source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, IGMP packets, TCP flag; ACL can be applied on both ingress and egress sides
    Time-based ACLs supported
    Quality of service
    Priority levels 8 hardware queues
    Scheduling Strict priority and Weighted Round-Robin (WRR) queue assignment based on DSCP and Class of Service (802.1p/CoS)
    Class of service Port based, 802.1p VLAN priority based, IPv4/v6 IP precedence/Type of Service (ToS)/DSCP based, Differentiated Services (DiffServ), classification and re-marking ACLs, trusted QoS
    Rate limiting Ingress policer, egress shaping and rate control per VLAN, per port, and flow based
    Congestion avoidance A TCP congestion avoidance algorithm is required to reduce and prevent global TCP loss synchronization
    IPv6
    IPv6 IPv6 host mode IPv6 over Ethernet Dual IPv6/IPv4 stack
    IPv6 Neighbor Discovery (ND)
    IPv6 stateless address auto-configuration
    Path Maximum Transmission Unit (MTU) discovery Duplicate Address Detection (DAD)
    ICMP version 6
    IPv6 over IPv4 network with Intrasite Automatic Tunnel Addressing Protocol (ISATAP) support
    USGv6 and IPv6 Gold Logo certified
    IPv6 QoS Prioritizes IPv6 packets in hardware
    IPv6 ACL Drop or rate-limit IPv6 packets in hardware
    Multicast Listener Discovery (MLD v1/2) snooping Delivers IPv6 multicast packets only to the required receivers
    IPv6 applications Web/SSL, Telnet server/SSH, Ping, Traceroute, Simple Network Time Protocol (SNTP), Trivial File Transfer Protocol (TFTP), Simple Network Management Protocol (SNMP), RADIUS, Syslog, DNS client, DHCP client, DHCP auto-configuration
    Management
    Cisco Business Dashboard Support for embedded probe for Cisco Business Dashboard running on the switch. Eliminates the need to set up a separate hardware or virtual machine for the Cisco Business Dashboard probe onsite
    Cisco Business mobile app Mobile app for Cisco Business switch and wireless products. Helps to set up a local network in minutes and provide easy management at your fingertips.
    Cisco Network Plug and Play (PnP) agent The Cisco Network PnP solution provides a simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or for provisioning updates to an existing network. The solution provides a unified approach to provision Cisco routers, switches, and wireless devices with a near-zero-touch deployment experience.
    Supports Cisco PnP Connect
    Web user interface Built-in switch configuration utility for easy browser-based device configuration (HTTP/HTTPS). Supports configuration, wizards, system dashboard, system maintenance, and monitoring
    Basic and advanced mode for maximum operational efficiency
    SNMP SNMP versions 1, 2c, and 3 with support for traps, and SNMP v3 User-Based Security Model (USM)
