Bạn đang tìm kiếm một thiết bị mạng mạnh mẽ, ổn định để nâng cấp hệ thống mạng LAN của doanh nghiệp mình? Trong thời đại số hóa, việc xây dựng một hệ thống mạng nội bộ mạnh mẽ, ổn định và bảo mật là yếu tố sống còn cho sự phát triển của doanh nghiệp. Đặc biệt với các doanh nghiệp vừa và nhỏ (SMB), việc lựa chọn thiết bị mạng phù hợp có thể giúp tiết kiệm chi phí mà vẫn đảm bảo hiệu quả vận hành. Vậy đâu là giải pháp lý tưởng?
Hãy cùng Hợp Thành Thịnh khám phá Switch Cisco SF550X-24-K9 – sản phẩm nằm trong series Cisco Small Business 550X, được thiết kế tối ưu cho môi trường doanh nghiệp vừa và nhỏ.

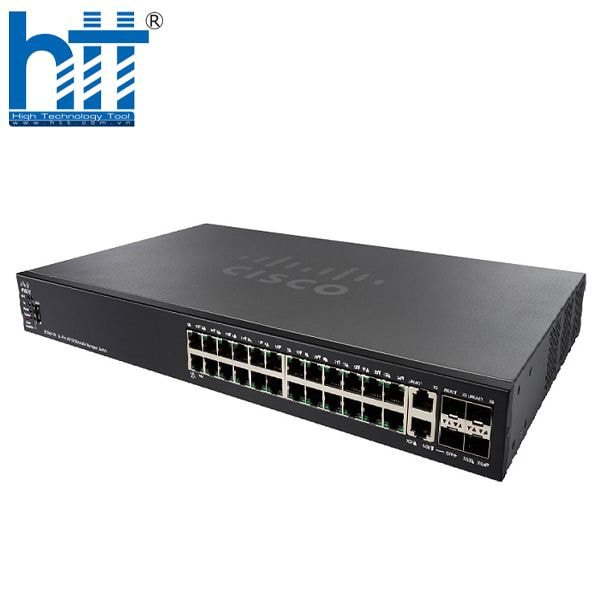

1. Tổng quan về Switch Cisco SF550X-24-K9
Cisco SF550X-24-K9 là switch lớp 3 mạnh mẽ, hỗ trợ tới 24 cổng 10/100Mbps và 4 cổng 10 Gigabit Ethernet (bao gồm 2 cổng combo 10GBase-T/SFP+ và 2 cổng SFP+). Thiết bị không chỉ đảm bảo tốc độ truyền tải dữ liệu nhanh chóng mà còn hỗ trợ khả năng mở rộng linh hoạt cho doanh nghiệp đang phát triển.
Thông số nổi bật:
- 24 x 10/100 ports
- 4 x 10 Gigabit Ethernet (2 x 10GBase-T/SFP+ combo + 2 x SFP+)
- Hỗ trợ Layer 2 và Layer 3
- Công nghệ chuyển mạch thông minh, bảo mật tiên tiến
2. Ứng dụng trong doanh nghiệp
Switch Cisco SF550X-24-K9 là giải pháp hoàn hảo cho:
- Kết nối các thiết bị văn phòng như máy tính, máy in, camera IP, thiết bị Wi-Fi.
- Mở rộng hệ thống mạng LAN tại các doanh nghiệp vừa và nhỏ có lượng user không quá lớn.
- Phòng ban độc lập cần hạ tầng mạng riêng nhưng vẫn muốn đảm bảo hiệu suất cao.
3. Ưu điểm nổi bật của Cisco SF550X-24-K9
- Thiết kế để bàn nhỏ gọn, dễ dàng lắp đặt ở mọi vị trí trong văn phòng.
- Tự động nhận dạng cáp MDI/MDI-X, giúp tiết kiệm thời gian và công sức khi triển khai.
- Tính năng Address Learning and Aging, hỗ trợ xử lý thông tin địa chỉ MAC tối ưu.
- Khả năng kiểm soát lưu lượng dữ liệu, hạn chế mất gói và tắc nghẽn đường truyền.
- Độ tin cậy cao, được sản xuất bởi Cisco – thương hiệu hàng đầu thế giới trong lĩnh vực thiết bị mạng.
Liên Hệ Ngay Để Được Tư Vấn & Đặt Hàng
Liên hệ ngay với Hợp Thành Thịnh để đặc hàng và được tư vấn miễn phí. Ngoài ra Hợp Thành Thịnh còn cung cấp thêm các hãng như: Juniper Networks, HPE Aruba, TP-Link,...Không chỉ cung cấp sản phẩm, chúng tôi còn có dịch vụ sửa chữa chuyên nghiệp sau bảo hành cho các thiết bị như: Màn hình, thiết bị mạng, máy in, máy tính, máy chiếu, ups,... Đồng hành và hỗ trợ tận tâm cho các anh em kỹ thuật, IT, và các cửa hàng tin học.
Thông số kỹ thuật của Switch Cisco SF550X-24-K9
| General Information |
| Product Name |
SF550 24 Port Stackable Switch |
| Manufacturer Part Number |
SF550X-24-K9-NA |
| Product Series |
550X |
| Product Model |
SF550X-24-K9 |
| Product Type |
Layer 3 Switch |
| Interfaces/Ports |
| Total Number of Network Ports |
26 |
| Uplink Port |
Yes |
| Modular |
Yes |
| Stack Port |
Yes |
| Port / Expansion Slot Details |
24 x Fast Ethernet Network
2 x 10 Gigabit Ethernet Network
4 x 10 Gigabit Ethernet Uplink
|
| I/O Expansions |
| Number of Total Expansion Slots |
4 |
| Expansion Slot Type |
SFP+ |
| Shared SFP Slot |
Yes |
| Number of SFP+ Slots |
4 |
| Media & Performance |
| Media Type Supported |
Twisted Pair
Optical Fiber
|
| Ethernet Technology |
Fast Ethernet
10 Gigabit Ethernet
|
| Network Technology |
10/100Base-T
10GBase-X
10GBase-T
|
| Network & Communication |
| Layer Supported |
3 |
| Hardware |
| Console port |
Cisco Standard RJ45 console port |
| OOB management port |
Dedicated Gigabit management port for out-of-band management on SG550XG models |
| RPS |
RPS connector |
| USB slot |
USB Type-A slot on the front panel of the switch for easy file and image management |
| Buttons |
Reset button |
| Cabling type |
Unshielded twisted pair (UTP) Category 5 or better; fiber options (SMF and MMF); coaxial SFP+ |
| LEDs |
System, master, fan, RPS, stack ID, link/speed per port |
| Flash |
256 MB |
| CPU |
800 MHz (dual-core) ARM |
| CPU memory |
512 MB |
| Management & Protocols |
| Manageable |
Yes |
| Physical Characteristics |
| Unit dimensions (W x H x D) |
440 x 44 x 257 mm (17.3 x 1.7 x 10.12 in) |
| Unit weight |
3.09 kg (6.81 lb) |
| Power |
100 - 240V 47 - 63 Hz, internal, universal |
| Certification |
UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Operating temperature |
32° to 122°F (0° to 50°C) |
| Storage temperature |
-4° to 158°F (-20° to 70°C) |
| Warranty |
| Limited Warranty |
Lifetime |
| Miscellaneous |
| Package Contents |
- SF550X-24-K9 Layer 3 Switch
- Power Cord
- Mounting Kit
- Serial Cable
- CD-ROM with User Documentation (PDF)
- Quick Start Guide
|
Các tính năng của Switch Cisco SF550X-24-K9
|
Layer 2 Switching
|
|
Spanning Tree Protocol
|
Standard 802.1d spanning tree support
Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default
Multiple spanning tree instances using 802.1s (MSTP); 16 instances are supported
|
|
Port grouping/link aggregation
|
Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)
- Up to 32 groups
- Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad LAG
|
|
VLAN
|
Support for up to 4094 active VLANs simultaneously; port-based and 802.1Q tag-based VLANs; MAC-based VLAN
Management VLAN
Private VLAN with promiscuous, isolated, and community port
Guest VLAN, unauthenticated VLAN, protocol-based VLAN, IP subnet-based VLAN, CPE VLAN
Dynamic VLAN assignment using RADIUS server along with 802.1x client authentication
|
|
Voice VLAN
|
Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Auto voice capabilities deliver networkwide zero-touch deployment of voice endpoints and call control devices.
|
|
Multicast TV VLAN
|
Multicast TV VLAN allows the single multicast VLAN to be shared in the network while subscribers remain in separate VLANs. This feature is also known as Multicast VLAN Registration (MVR).
|
|
Q-in-Q
|
VLANs transparently cross over a service provider network while isolating traffic among customers.
|
|
GVRP/GARP
|
Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP) enable automatic propagation and configuration of VLANs in a bridged domain.
|
|
Unidirectional Link Detection (UDLD)
|
UDLD monitors physical connection to detect unidirectional links caused by incorrect wiring or port faults to prevent forwarding loops and blackholing of traffic in switched networks.
|
|
DHCP relay at Layer 2
|
Relay of DHCP traffic to DHCP server in a different VLAN. Works with DHCP option 82.
|
|
IGMP (versions 1, 2, and 3) snooping
|
Internet Group Management Protocol (IGMP) limits bandwidth-intensive multicast traffic to only the requesters; supports 4K multicast groups (source-specific multicasting is also supported).
|
|
IGMP querier
|
IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router.
|
|
HOL blocking
|
Head-of-line (HOL) blocking.
|
|
Layer 3
|
|
IPv4 routing
|
Wirespeed routing of IPv4 packets
Up to 7K routes and up to 256 IP interfaces
|
|
Wirespeed IPv6 static routing
|
Up to 7K routes and up to 256 IPv6 interfaces
|
|
Layer 3 interface
|
Configuration of Layer 3 interface on physical port, LAG, VLAN interface, or loopback interface
|
|
CIDR
|
Support for classless interdomain routing
|
|
RIP v2
|
Support for Routing Information Protocol version 2 for dynamic routing
|
|
VRRP
|
Virtual Router Redundancy Protocol (VRRP) delivers improved availability in a Layer 3 network by providing redundancy of the default gateway servicing hosts on the network. VRRP versions 2 and 3 are supported. Up to 255 virtual routers are supported
|
|
Policy-based routing (PBR)
|
Flexible routing control to direct packets to different next hop based on IPv4 or IPv6 ACL
|
|
DHCP server
|
Switch functions as an IPv4 DHCP server serving IP addresses for multiple DHCP pools/scopes.
Support for DHCP options
|
|
DHCP relay at Layer 3
|
Relay of DHCP traffic across IP domains
|
|
User Datagram Protocol (UDP) relay
|
Relay of broadcast information across Layer 3 domains for application discovery or relaying of BOOTP/DHCP packets
|
|
Stacking
|
|
Hardware stack
|
Up to 8 units in a stack. Up to 400 ports managed as a single system with hardware failover.
|
|
High availability
|
Fast stack failover delivers minimal traffic loss. Support link aggregation across multiple units in a stack.
|
|
Plug-and-play stacking configuration/management
|
Master/backup for resilient stack control
Autonumbering
Hot swap of units in stack
Ring and chain stacking options, autostacking port speed, flexible stacking port options
|
|
High-speed stack interconnects
|
Cost-effective high-speed 10G fiber and copper interfaces. Support LAG as stacking interconnects for even higher bandwidth.
|
|
Security
|
|
SSH
|
SSH is a secure replacement for Telnet traffic. SCP also uses SSH. SSH versions 1 and 2 are supported.
|
|
SSL
|
Secure Sockets Layer (SSL) encrypts all HTTPS traffic, allowing secure access to the browser-based management GUI in the switch.
|
|
IEEE 802.1X (authenticator role)
|
RADIUS authentication and accounting, MD5 hash, guest VLAN, unauthenticated VLAN, single/multiple host mode, and single/multiple sessions.
Supports time-based 802.1X dynamic VLAN assignment.
|
|
Web-based authentication
|
Web-based authentication provides network admission control through web browser to any host devices and operating systems.
|
|
STP BPDU Guard
|
A security mechanism to protect the networks from invalid configurations. A port enabled for Bridge Protocol Data Unit (BPDU) Guard is shut down if a BPDU message is received on that port. This avoids accidental topology loops.
|
|
STP Root Guard
|
This prevents edge devices not in the network administrator’s control from becoming Spanning Tree Protocol root nodes.
|
|
DHCP snooping
|
Filters out DHCP messages with unregistered IP addresses and/or from unexpected or untrusted interfaces. This prevents rogue devices from behaving as a DHCP server.
|
|
IP Source Guard (IPSG)
|
When IP Source Guard is enabled at a port, the switch filters out IP packets received from the port if the source IP addresses of the packets have not been statically configured or dynamically learned from DHCP snooping. This prevents IP address spoofing.
|
|
Dynamic ARP Inspection (DAI)
|
The switch discards ARP packets from a port if there are no static or dynamic IP/MAC bindings or if there is a discrepancy between the source or destination address in the ARP packet. This prevents man-in-the-middle attacks.
|
|
IP/MAC/Port Binding (IPMB)
|
The preceding features (DHCP Snooping, IP Source Guard, and Dynamic ARP Inspection) work together to prevent DoS attacks in the network, thereby increasing network availability.
|
|
Secure Core Technology (SCT)
|
Makes sure that the switch will receive and process management and protocol traffic no matter how much traffic is received.
|
|
Secure Sensitive Data (SSD)
|
A mechanism to manage sensitive data (such as passwords, keys, and so on) securely on the switch, populating this data to other devices, and secure autoconfig. Access to view the sensitive data as plaintext or encrypted is provided according to the user-configured access level and the access method of the user.
|
|
Private VLAN
|
Private VLAN provides security and isolation between switch ports, which helps ensure that users cannot snoop on other users’ traffic; supports multiple uplinks.
|
|
Port security
|
Ability to lock source MAC addresses to ports and limit the number of learned MAC addresses.
|
|
RADIUS/TACACS+
|
Supports RADIUS and TACACS authentication. Switch functions as a client.
|
|
RADIUS accounting
|
The RADIUS accounting functions allow data to be sent at the start and end of services, indicating the amount of resources (such as time, packets, bytes, and so on) used during the session.
|
|
Storm control
|
Broadcast, multicast, and unknown unicast.
|
|
DoS prevention
|
Denial-of-service (DoS) attack prevention.
|
|
Multiple user privilege levels in CLI
|
Level 1, 7, and 15 privilege levels.
|
|
ACLs
|
Support for up to 2K entries on SG550XG models.
Support for up to 3K entries on all other models.
Drop or rate limit based on source and destination MAC, VLAN ID or IP address, protocol, port, DSCP/IP precedence, TCP/User Datagram Protocol (UDP) source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, Internet Group Management Protocol (IGMP) packets, TCP flag; ACL can be applied on both ingress and egress sides.
Time-based ACLs supported.
|
Các loại module quang cisco sử dụng cho Switch Cisco SF550X-24-K9
|
pported SFP/SFP+ modules
|
SKU
|
Media
|
Speed
|
Maximum Distance
|
|
MGBBX1
|
Single-mode fiber
|
1000 Mbps
|
10 km
|
|
MGBSX1
|
Multimode fiber
|
1000 Mbps
|
500 m
|
|
MGBLH1
|
Single-mode fiber
|
1000 Mbps
|
40 km
|
|
MGBLX1
|
Single-mode fiber
|
1000 Mbps
|
10 km
|
|
MGBT1
|
UTP cat 5e
|
1000 Mbps
|
100 m
|
|
SFP-H10GB-CU1M
|
Copper coax
|
10 Gig
|
1 m
|
|
SFP-H10GB-CU3M
|
Copper coax
|
10 Gig
|
3 m
|
|
SFP-H10GB-CU5M
|
Copper coax
|
10 Gig
|
5 m
|
|
SFP-10G-SR
|
Multimode fiber
|
10 Gig
|
26 m - 400 m
|
|
SFP-10G-LR
|
Single-mode fiber
|
10 Gig
|
10 km
|
|
|
SFP-10G-SR-S
|
Multimode fiber
|
10 Gig
|
26 m - 400 m
|
|
|
SFP-10G-LR-S
|
Single-mode fiber
|
10 Gig
|
10 km
|
|
