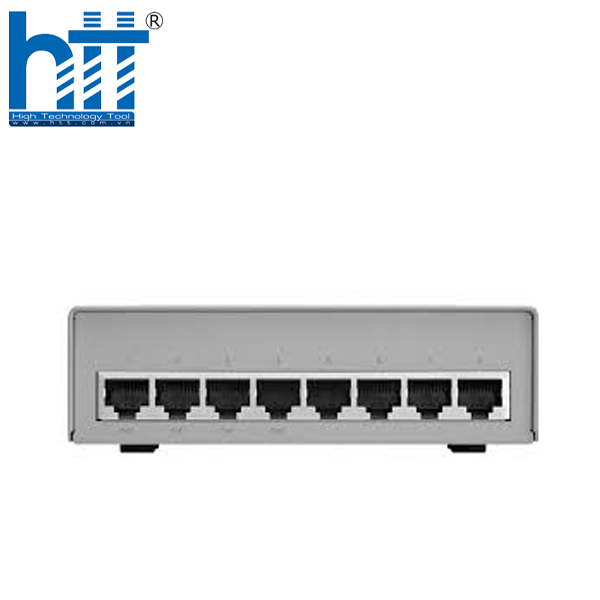

SWITCH CISCO

Performance

Capacity in Millions of Packets per Second (mpps) (64-byte packets)

11.9

Switching Capacity in Gigabits per Second (Gbps)

13.6

Layer 2 Switching

Spanning Tree Protocol (STP)

Standard 802.1d STP support

Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default

Port grouping

Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)

-  Up to 4 groups

-  Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation

VLAN

16 VLANs

Port-based and 802.1Q tag-based VLANs

Voice VLAN

Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS

Internet Group Management Protocol (IGMP) versions 1 and 2 snooping

16

Head-of-line (HOL) blocking

HOL blocking prevention

Security

IEEE 802.1X (Authenticator role)

802.1X: RADIUS authentication, MD5 hash

Port security

Locks MAC addresses to ports, and limits the number of learned MAC addresses

Storm control

Broadcast, multicast, and unknown unicast

DoS prevention

DoS attack prevention

Quality of Service

Priority levels

4 hardware queues

Scheduling

Strict priority and weighted round-robin (WRR)

Queue assignment based on differentiated services code point (DSCP) and class of service (802.1p/CoS)

Class of service

Port based, 802.1p VLAN priority based, IPv4/v6 IP precedence/type of service (ToS)/DSCP based, Differentiated Services (DiffServ)

Rate limiting

Ingress policer, per VLAN and per port

Standards

Standards

IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad LACP, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, IEEE 802.1D (STP), IEEE 802.1Q/p VLAN, IEEE 802.1w RSTP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, RFC 768, RFC 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 879, RFC 896, RFC 826, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, RFC 919, RFC 922, RFC 920, RFC 950, RFC 951, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1350, RFC 1533, RFC 1541, RFC 1542, RFC 1624, RFC 1700, RFC 1867, RFC 2030, RFC 2616, RFC 2131, RFC 2132, RFC 3164, RFC 2618

IPv6

IPv6

IPv6 host mode

IPv6 over Ethernet

Dual IPv6/IPv4 stack

IPv6 neighbor and router discovery (ND)

IPv6 stateless address auto-configuration

Path maximum transmission unit (MTU) discovery

Duplicate address detection (DAD)

Internet Control Message Protocol (ICMP) version 6

IPv6 over IPv4 network with Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) support

IPv6 QoS

Prioritize IPv6 packets in hardware

Multicast Listener Discovery (MLD) snooping

Deliver IPv6 multicast packets only to the required receivers

IPv6 applications

Web, ping, Simple Network Time Protocol (SNTP), Trivial File Transfer Protocol (TFTP), RADIUS, syslog, DNS client

IPv6 RFCs supported

RFC 2463: ICMP version 6

RFC 3513: IPv6 address architecture

RFC 4291: IPv6 addressing architecture

RFC 2460: IPv6 specification

RFC 2461: Neighbor discovery for IPv6

RFC 2462: IPv6 stateless address auto-configuration

RFC 1981: Path maximum transmission unit (MTU) discovery

RFC 4007: IPv6 scoped address architecture

RFC 3484: Default address selection mechanism

RFC 4214: ISATAP tunneling

RFC 4293: MIB IPv6: Textual conventions and general group

RFC 3595: Textual conventions for IPv6 flow label

Management

Web user interface

Built-in switch configuration utility for easy browser-based device configuration (HTTP). Supports configuration, system dashboard, system maintenance, and monitoring

Remote Monitoring (RMON)

Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis

IPv4 and IPv6 dual stack

Coexistence of both protocol stacks to ease migration

Firmware upgrade

Web browser upgrade (HTTP) and TFTP

Port mirroring

Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to 4 source ports can be mirrored to one destination port. A single session is supported.

VLAN mirroring

Traffic from a VLAN can be mirrored to a port for analysis with a network analyzer or RMON probe. Up to 4 source VLANs can be mirrored to one destination port. A single session is supported.

Dynamic Host Configuration Protocol (DHCP) (options 66 and 67)

(DHCP) options facilitate tighter control from a central point (DHCP server) to obtain IP address and perform auto-configuration (with configuration file download)

Text-editable config files

Config files can be edited with a text editor and downloaded to another switch, facilitating easier mass deployment

Cloud services

Support for FindIT Network Discovery Utility and Cisco Active Advisor

Localization

Localization of GUI and documentation into multiple languages

Other management

HTTP, RADIUS, port mirroring, TFTP upgrade, DHCP client, BOOTP, SNTP, ping, syslog

Power Efficiency

Energy Detect mode

Automatically turns off power on Gigabit Ethernet RJ-45 port when the switch detects a link down

Active mode is resumed without loss of any packets when the switch detects that the link is back up

General

Jumbo frames

Frame sizes up to 9 KB supported on 10/100 and Gigabit Ethernet interfaces

MAC table

Up to 8,000 MAC addresses

Discovery

Link Layer Discovery Protocol (LLDP) (802.1ab) with LLDP‑MED extensions

LLDP allows the switch to advertise its identification, configuration, and capabilities to neighboring devices, which store the data in an MIB. LLDP-MED is an enhancement to LLDP that adds the extensions needed for IP phones.

Bonjour

The switch advertises itself using the Bonjour protocol

Power over Ethernet (PoE)

Power Dedicated to PoE

32W

Number of Ports That Support PoE

4

Power consumption

Power Savings Mode

Auto power down for link down

Power Consumption: Worst Case

110V/P=7.6W
220V/P=8.1W

Heat Dissipation (BTU/hr)

27.6

Buttons

Reset button

Cabling type

Unshielded twisted pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5 Ethernet or better for 1000BASE-T

LEDs

System, Link/Act, PoE, Speed

Flash

8 MB

CPU memory

32 MB

Packet buffer

4 Mb

Environmental

Dimensions (W x H x D)

130 x 42.3 x 130 mm, 5.12 x 1.52 x 5.12 Inches

Unit weight

1.26 Kilograms, 2.78 Pounds

Power

(external) 100V-240V, 1-0.56A, 50-60 HZ

Certification

UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A

Operating temperature

32° to 104°F (0° to 40°C)

Storage temperature

–4° to 158°F (–20° to 70°C)

Operating humidity

10% to 90%, relative, noncondensing

Storage humidity

10% to 90%, relative, noncondensing
